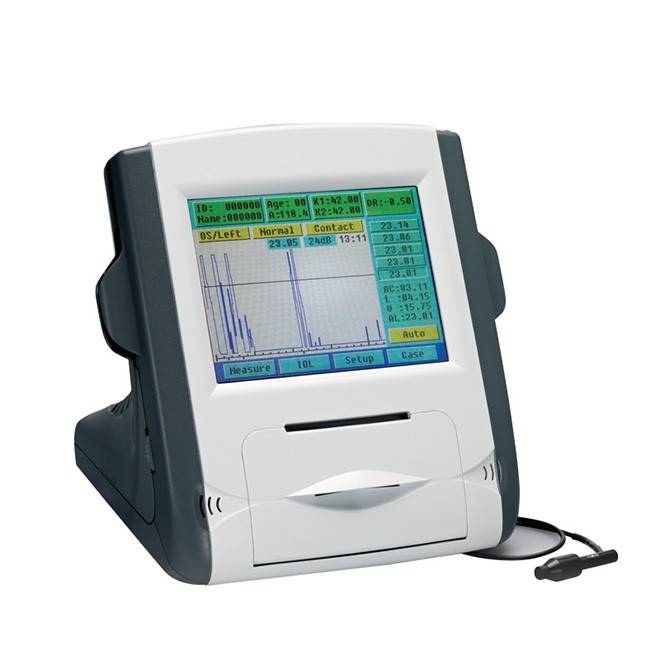

Ophthalmic A-Scan & P-Scan Ultrasound Biometer NEUYZ08
- High-performance ophthalmic ultrasound system
- Dual A-scan and P-scan capabilities
- A-scan frequency: 10MHz with a range of 15mm – 40mm
- Precision measurement of ±0.05mm
- P-scan frequency: 20MHz, high resolution at 5μm
- Flexible diagnostics with SINGLE and MAP display modes
- Built-in data management features for easy case review
- Suitable for various eye modes: Phakic, Aphakic, Dense Cataract
- IOL calculation using multiple formulas
- Ideal for clinics, hospitals, and vision care centers.
- SKU
- NEUYZ08
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
NEUYZ08 Ophthalmic A-Scan & P-Scan Ultrasound Biometer
High-performance dual-mode ophthalmic ultrasound system combining A-scan and P-scan capabilities for precise biometric eye measurements. Delivers ±0.05mm precision with advanced IOL calculation formulas and flexible diagnostic display modes for comprehensive anterior segment imaging.
Clinical overview
The NEUYZ08 is a high-performance ophthalmic ultrasound system equipped with both A-scan and P-scan probes, offering reliable and precise biometric eye measurements for various clinical applications. This dual-mode platform enables comprehensive anterior segment evaluation and accurate IOL power calculations across multiple eye conditions.
Ideal for ophthalmology clinics, hospitals, and vision care centers requiring fast, reliable, and detailed ocular biometry and anterior segment imaging. The system supports immersion and contact measurement techniques with built-in data management for streamlined case review and patient tracking.
Key features & surgeon benefits
Axial Length & IOL Measurement
- ±0.05mm measurement precision across 15–40mm range
- Macula Lutea Trace function for consistent tracking
- Six IOL calculation formulas: SRK-II, SRK-T, Binkhorst-II, Holladay, Hoffer-Q, Haigis
High-Resolution Anterior Segment
- 20MHz frequency with 5μm resolution for detailed imaging
- 45° angled probe design for improved ease of use
- SINGLE and MAP display modes for flexible diagnostics
Streamlined Data Management
- Patient name, ID, and operator name input for complete case documentation
- Storage capacity: up to 10 cases with 5 readings per case
- Printable IOL calculation sheets for patient records
Multi-Condition Support
- Phakic, Aphakic, and Dense Cataract modes
- Multiple IOL condition settings for diverse surgical scenarios
- IOP adjustment capability for measured vs. actual intraocular pressure
Technical specifications
| A-Scan Frequency | 10MHz imported small-size probe with built-in luminotron |
|---|---|
| A-Scan Measurement Range | 15–40mm |
| A-Scan Precision | ±0.05mm |
| P-Scan Frequency | 20MHz with 45° angled probe |
| P-Scan Resolution | 5μm |
| P-Scan Measurement Range | 150–1500μm |
| Display Modes | A-scan waveform, P-scan SINGLE and MAP modes |
| Measurement Methods | Immersion and contact techniques |
| Eye Modes | Phakic, Aphakic, Dense Cataract, multiple IOL conditions |
| IOL Calculation Formulas | SRK-II, SRK-T, Binkhorst-II, Holladay, Hoffer-Q, Haigis |
| Data Storage | Up to 10 cases, 5 readings per case |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Console Unit | NEUYZ08 ultrasound biometer with integrated display and controls | 1 |
| A-Scan Probe | 10MHz imported small-size probe with built-in luminotron | 1 |
| P-Scan Probe | 20MHz 45° angled probe for anterior segment imaging | 1 |
| Probe Cables | Connection cables for A-scan and P-scan probes | 2 |
| Power Supply | AC power adapter and cable | 1 |
| User Manual | Comprehensive operating and maintenance guide | 1 |
| Calibration Block | Reference standard for system calibration verification | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system specifications, pricing, delivery timelines, and customisation options for your clinic or hospital environment.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

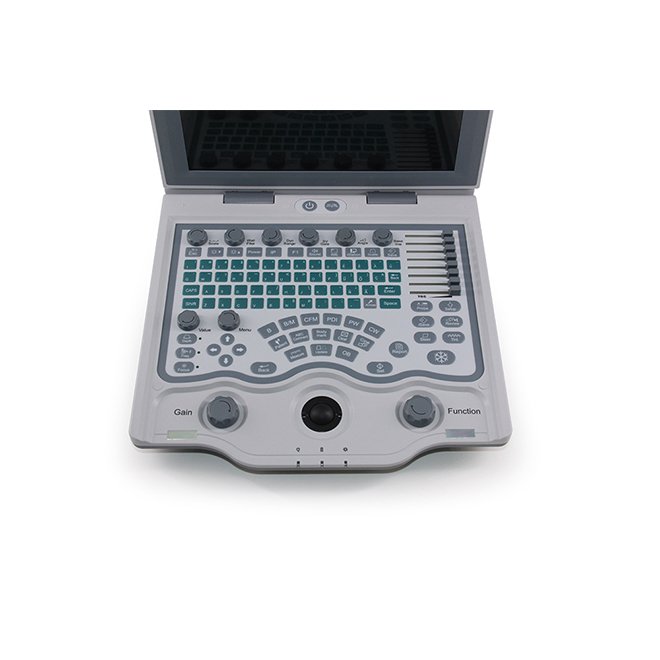

Ophthalmic Ultrasound Scanner NEUPU23
- High-end laptop-design B/W ultrasound imaging system - Lightweight and portable at just 2.3kg - Clear diagnostic images with advanced imaging technologies - Extensive software package for multiple medical specialties - 80 element probe with multi-frequency capabilities - Upgradable system with two USB ports for connectivity - Compatible with HP laser printers for easy printing - 10.4" color TFT LCD monitor with 256 gray levels - 256 frames Cineloop for dynamic imaging - Includes essential accessories like a probe, ultrasound gel, and user manual

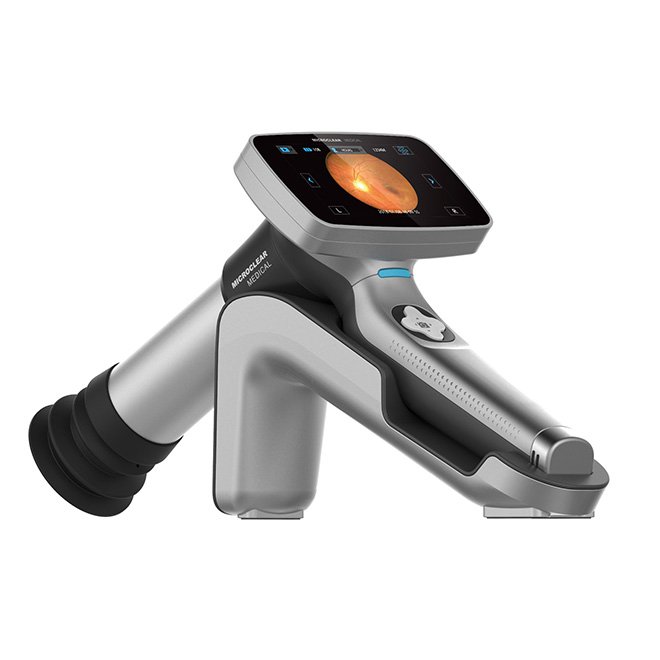

Handheld Digital Imaging Portable Fundus Camera NEUHA06
- Handheld portable fundus camera, model NEUHA06. - High-resolution imaging with 16MP focus mode. - 45° field of view and minimum pupil size of 2.5mm. - Dual shooting types: infrared and white light. - 3.97-inch multi-target touch screen with 800×480 resolution. - Internal storage capacity of 16GB, supports USB/Wi-Fi/BT/4G. - Long-lasting lithium battery with over 24 hours of standby time. - App compatible with Windows and Android, supports DICOM. - Includes patient data management software and wireless printing. - Compact design weighing only 560g for easy portability.

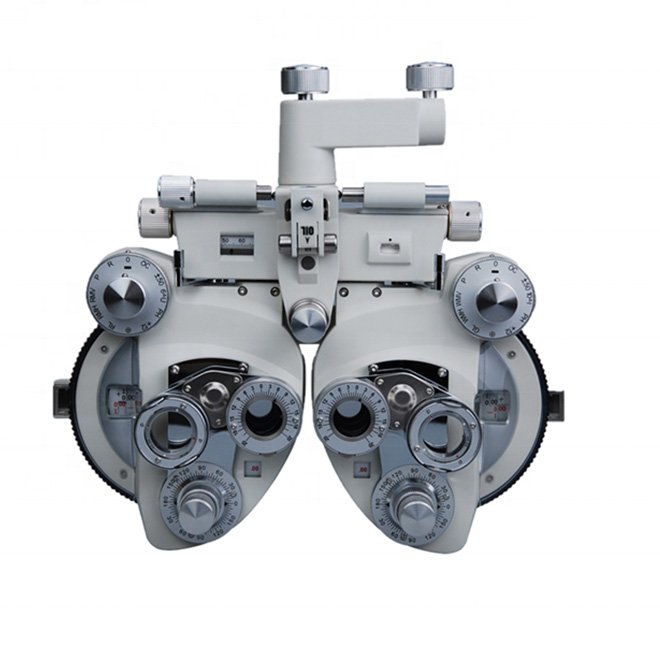

Portable Ophthalmic Phoropter Machine NEUPHP01
- High-precision Portable Ophthalmic Phoropter Machine NEUPHP01 - Sphere Power Range: +16.75 to -19.00 diopters with 0.25 diopter steps - Cylinder Power: Concave (-) 0.00 to -6.00, Convex (+) 0.00 to +6.00 diopters - Adjustable Cylinder Axis from 0° to 180° in 5° increments - Cross Cylinder Power ±25 diopters for versatile testing - Lightweight design at approximately 4.5 kg for easy portability - ISO & CE Certified for quality assurance - Comes with multiple included accessories for comprehensive assessments - Available in multiple color options including custom requests - Compact dimensions: 31.8 cm × 9.6 cm × 29.3 cm for convenient storage

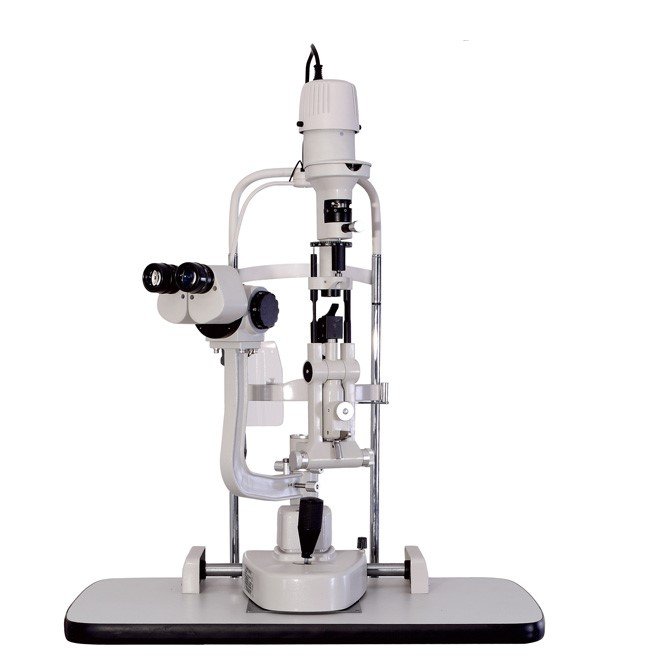

Digital Slit Lamp Microscope NEU2ER
- Advanced Digital Slit Lamp Microscope NEU2ER with a Galileo parallel style design - Offers multiple magnification options: 6x, 10x, 16x, 25x, and 40x - Adjustable eyepieces with a range of -8D to +8D for individualized comfort - Wide field of view: 33mm (6X) to 5mm (40X) for enhanced viewing experience - Versatile slit width and length adjustment from 0mm-14mm - Equipped with four types of filters: Heat absorption, Grey, Red free (Green), and Cobalt blue - Halogen bulb (12v, 50w) for bright and consistent illumination - Multiple movement capabilities: Forward/backward (90mm), Left/right (100mm), and up/down (30mm) - Durable construction with a gross weight of 25Kg and net weight of 21Kg - Compliance with safety standards (IEC601-1, type â… of BF Model) for safe operation

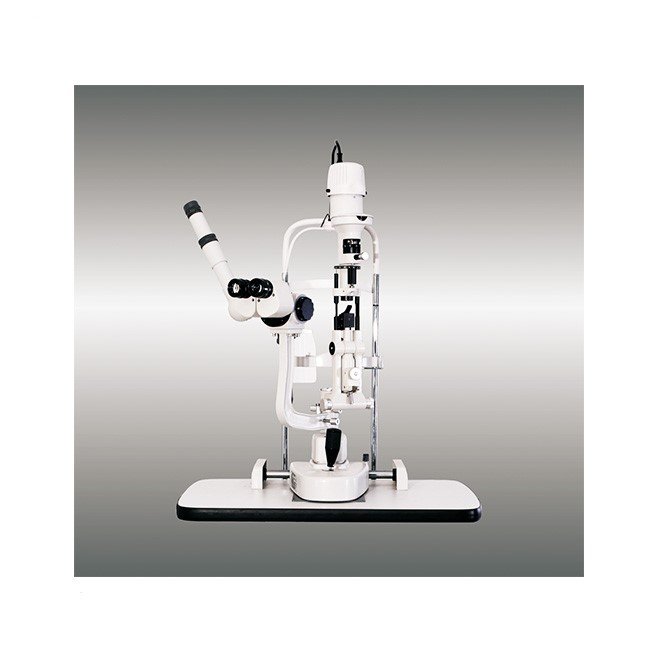

Slit Lamp Eye Examination Instruments NEU2ER-L
- High-quality Slit Lamp Eye Examination Instrument (NEU2ER-L) - Galileo parallel style microscope with multiple magnification options - Total magnification range: 10x, 16x, 25x - Adjustable eyepiece magnification: 12.5x - Wide field of view: up to 33mm at 6X - Pupil distance adjustment: 55 mm to 75 mm - Various illumination angles: 0, 5, 10, 15, 20 degrees - 12V, 50W halogen bulb with heat absorption filters - Compact and portable with a gross weight of 25kg - IEC601-1 certified for electrical safety

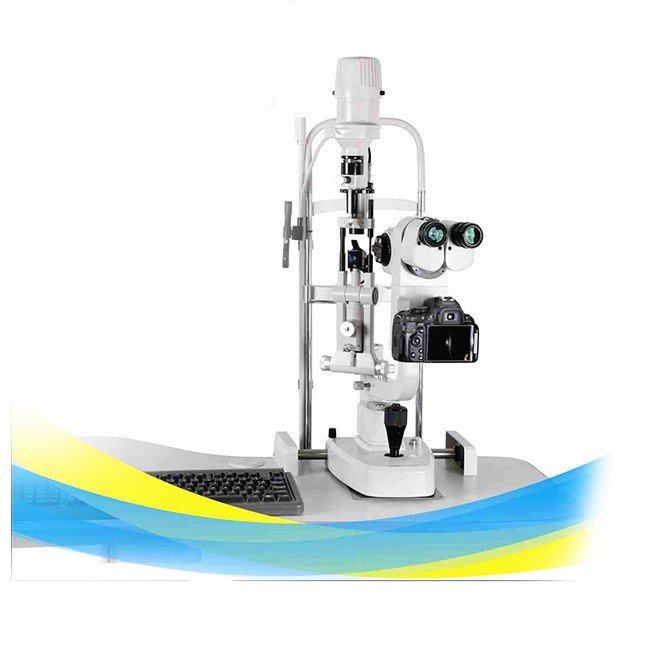

Slit Lamp NEU3ER
- High-quality Slit Lamp NEU3ER designed for precise eye examinations - Galileo Parallel microscope type for enhanced imaging capabilities - Features Nikon D 5200 DSLR with 24.1 Mega pixels for high-definition image capturing - Dual magnification options: 6x, 10x, 16x, 25x, and 40x for versatile viewing - Diopter adjustable from -5D to +5D to accommodate different user needs - Adjustable slit width from 0 to 14mm for customized examination - Continuous slit height adjustment ranging from 1mm to 14mm - Slit angle can be easily adjusted from 0 to 180 degrees - Multiple light spot diameters: 0.2mm, 1mm, 2mm, 5mm, 10mm, and 14mm - Includes various filters: Heat Absorption, Grey, Redfree, and Cobalt Blue for enhanced analysis

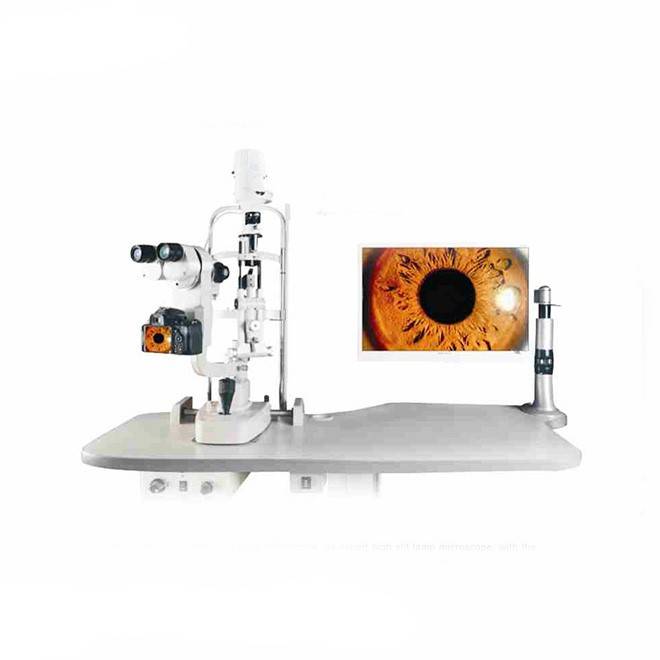

Slit lamp Bio-microscopy NEU3ER-E
