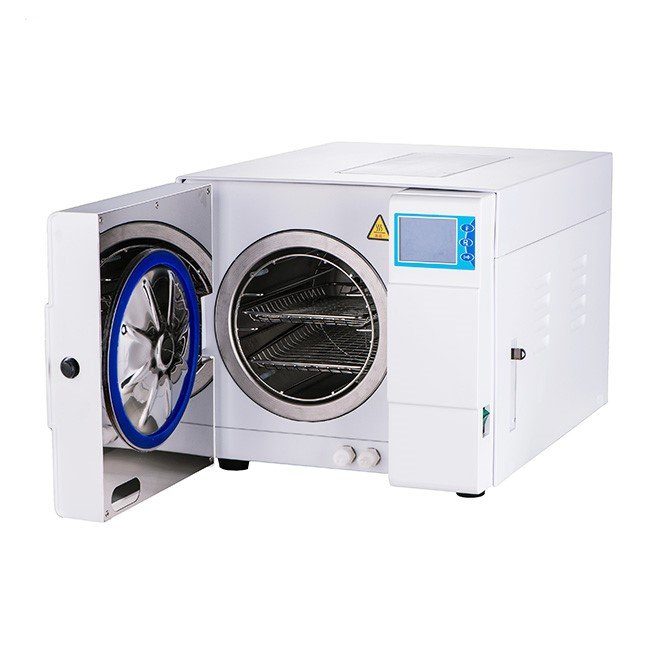

Autoclave Steam Sterilizer NEUTA01
- Advanced Autoclave Steam Sterilizer Model NEUTA01
- Chamber dimensions: Ø170x320 mm
- Chamber volume: 8 liters for efficient sterilization
- Capability to hold up to 2 trays
- Voltage: Dual 220/110V, frequency 50/60Hz
- Power consumption: 1500 watts
- Compact overall dimensions: 370x345x565 mm
- Weight: 34.5 kg for stability and portability
- Multiple sterilization programs for solids, liquids, wrapped items, and textiles
- Fast sterilization times ranging from 4 to 30 minutes depending on the program
- SKU
- NEUTA01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Autoclave Steam Sterilizer NEUTA01
Advanced steam sterilization technology for medical, dental, and laboratory applications. The NEUTA01 delivers reliable, efficient sterilization with an 8-liter chamber capacity, thirteen specialized programs, and dual voltage compatibility for global deployment.
Clinical overview
The Autoclave Steam Sterilizer NEUTA01 is an advanced medical sterilization system engineered to meet the demanding requirements of hospitals, clinics, dental practices, and research laboratories. With its 8-liter chamber capacity and compact footprint, this autoclave provides optimal sterilization performance while maintaining a space-efficient design suitable for diverse clinical environments. The unit's sophisticated control system manages thirteen distinct sterilization cycles, ensuring complete microbial destruction including bacterial spores, vegetative bacteria, fungi, and viruses across all load types.
Designed with versatility and clinical workflow efficiency in mind, the NEUTA01 features rapid cycle times ranging from 15 to 30 minutes depending on the program selected. The dual voltage capability (220/110V, 50/60Hz) ensures global compatibility, while the 1500-watt power consumption provides efficient heating without excessive energy demands. Integrated validation test programs—including Bowie-Dick, Helix, and vacuum leak tests—enable routine performance verification and quality assurance monitoring, supporting compliance with sterilization standards and accreditation requirements.
Key features & surgeon benefits
Thirteen Specialized Programs
- Solid instruments at 134°C and 121°C
- Liquid sterilization with extended exposure
- Wrapped items and textile cycles
- Prion decontamination protocol
- Integrated validation tests (B&D, Helix, vacuum)
Rapid Cycle Times
- Solid instruments: 15–25 minutes at 134°C
- Multiple runs per hour for high-volume practices
- Integrated drying (1–20 minutes adjustable)
- Automated cycle management reduces manual intervention
- Ready-to-use instruments in single automated process
Compact, Energy-Efficient Design
- Compact dimensions: 370 × 345 × 565 mm
- 1500-watt power consumption for efficient operation
- 8-liter capacity with 2-tray configuration
- 34.5 kg weight balances stability and portability
- Reduces instrument inventory requirements
Universal Compatibility
- Dual voltage: 220V and 110V automatic detection
- 50/60 Hz frequency support for worldwide use
- No voltage converters or modifications required
- Facilitates international facility expansion
- Consistent performance across all electrical standards
Technical specifications
| Indications | Surgical instruments, dental equipment, laboratory glassware, wrapped items, textiles, liquids, prion-contaminated instruments |
|---|---|
| Sizes / range | 8-liter chamber; Ø170 × 320 mm; accommodates 2 stainless steel trays |
| Material | Stainless steel chamber; perforated trays for optimal steam penetration |
| Sterilisation | Steam sterilization at 121°C and 134°C; 13 programs including solid, liquid, wrapped, textile, prion, drying, and validation cycles |
| Packaging | Individual instrument packaging or wrapped sets; drying cycle removes residual moisture |
| Warranty | 2 Year Manufacturer Warranty |
| Voltage | 220/110V dual voltage with automatic detection |
| Frequency | 50/60 Hz |
| Power Consumption | 1500 watts |
| Overall Dimensions | 370 × 345 × 565 mm (W × H × D) |
| Weight | 34.5 kg |
| Operating Pressure | 110–210 kPa |
| Cycle Times | 4–30 minutes depending on program; fastest solid cycle 15–25 minutes at 134°C |
| Drying Function | Adjustable 1–20 minutes |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Sterilization Chamber | 8-liter stainless steel chamber with integrated heating and pressure control | 1 |
| Stainless Steel Trays | Perforated trays for optimal steam penetration and load organization | 2 |
| Control Panel | Digital interface with program selection, temperature display, and cycle monitoring | 1 |
| Safety Valve | Pressure relief and safety mechanisms for operator protection | 1 |
| Vacuum System | Air removal system for wrapped items and porous loads | 1 |
| Temperature Sensor | Precision temperature monitoring and control system | 1 |
| Pressure Gauge | Chamber pressure monitoring and display | 1 |
| Drain Valve | Condensate removal and chamber drainage | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sterilization requirements, request detailed specifications, or schedule a product demonstration. We provide comprehensive support for equipment selection, installation, training, and ongoing technical assistance.
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
