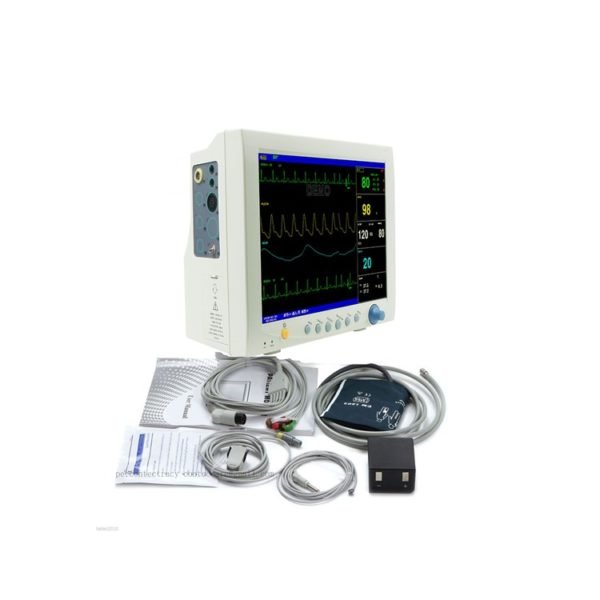

CMS7000 Patient Monitor ECG, RESP, SpO2, PR, NIBP and dual-channel TEMP

Introduction

This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for patient moving.

Main Features

■12.1” TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish（Europe）, Spanish（Mexico）,Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech,Bulgarian, Ukraine)”

■Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.

■All-round monitor for adult, pediatric and neonate.

■With standard interface, OxyCRG, trend chard, big character interface and view bed, convenient to observe.

■Waveform, parameter color and location can be set optionally.

■Operation mode: keys and buttons.

■Display up to 8-channel waveform on one screen.

■Display 7-lead ECG waveform on one screen, and with ECG step function.

■Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.

■HRV analysis function.

■NIBP measurement mode: Manual/AUTO/Continuous, storage for 4800-group NIBP data.

■Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.

■Drug concentration calculation and titration table functions.

■Print trend table data with one-key.

■Connect to Central Monitoring System by 3G, WiFi or wired mode.

■AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.

■Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).
