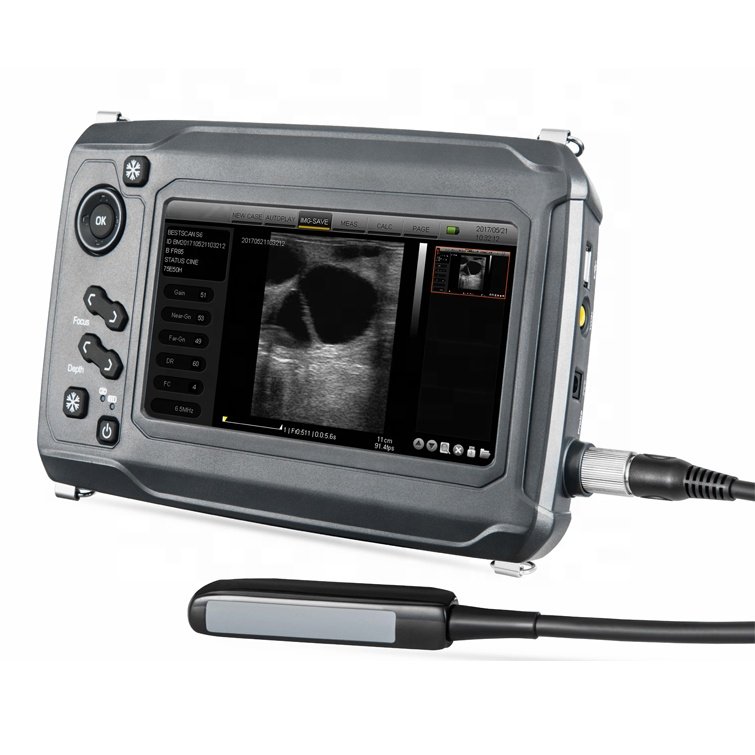

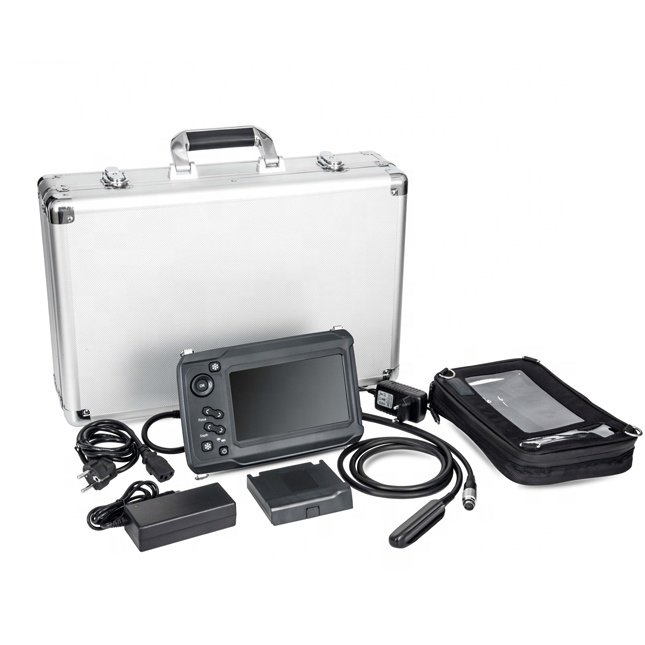

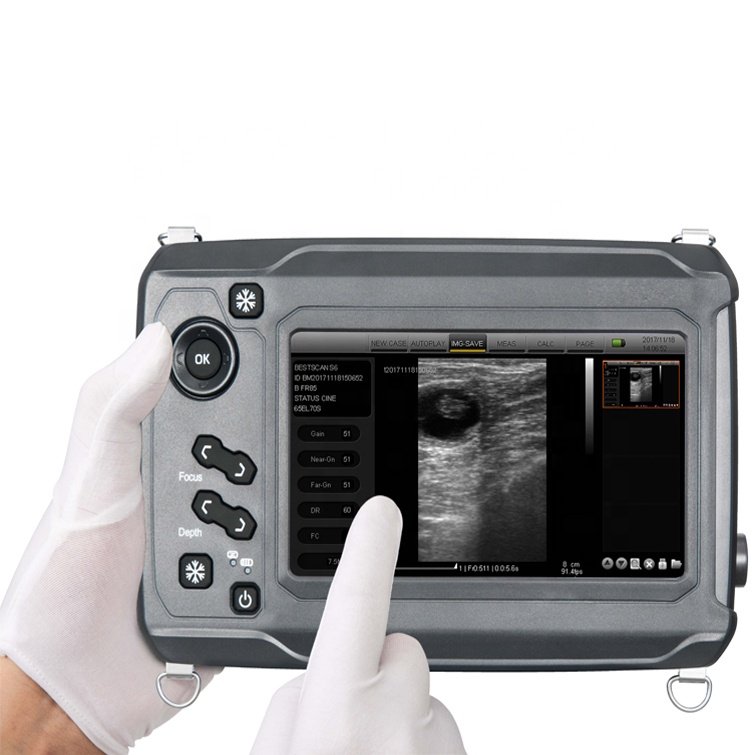

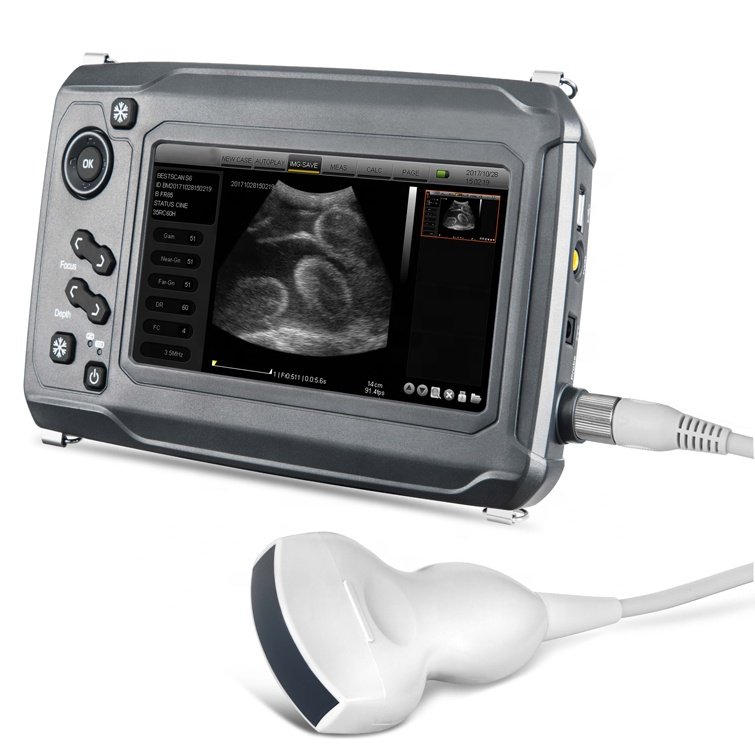

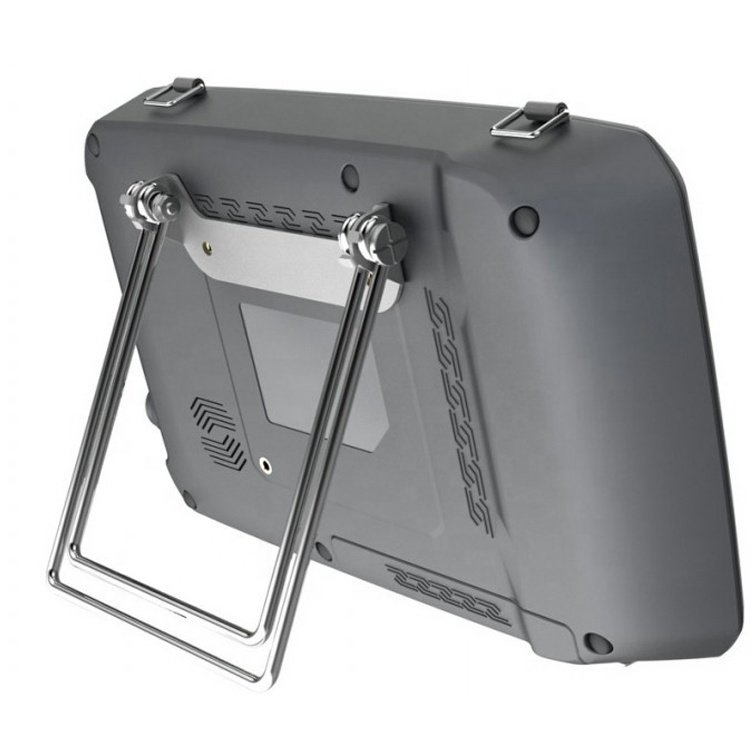

Compact Touch Ultrasound System Machine for Horses, Cows, Equine, Exotic Species and Small Animals NEUVU46
Roll over image to zoom in
Click to open expanded view

Compact Touch Ultrasound System Machine for Horses, Cows, Equine, Exotic Species and Small Animals NEUVU46

$4,490.00$4,990.00 (-10%)

In stock

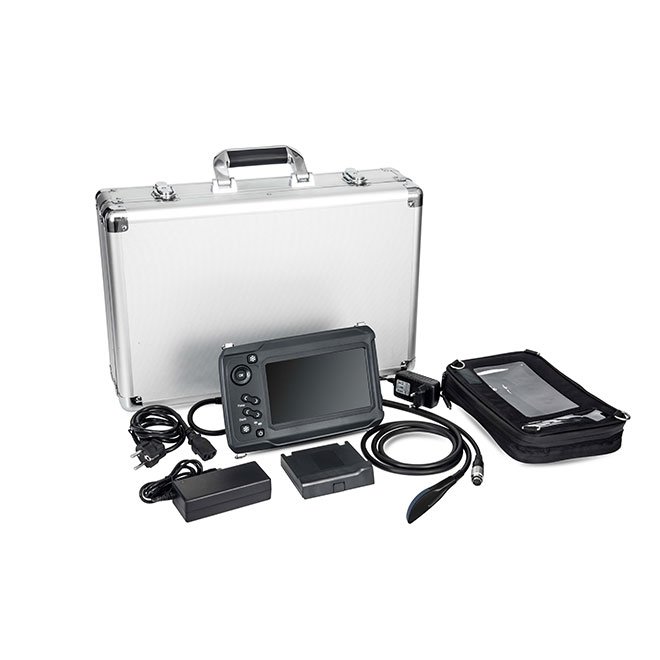

1. Environmental rating: With IP67 waterproof protective case; IP67 (probe head),IP45 (main unit)
2. Battery: Continuous scan greater than 9 hours with 2 batteries, replaceable battery design
3. Grid for estimation: With grid on the image area, you can easily estimate the size of the target substance like follicle, fertilized egg etc

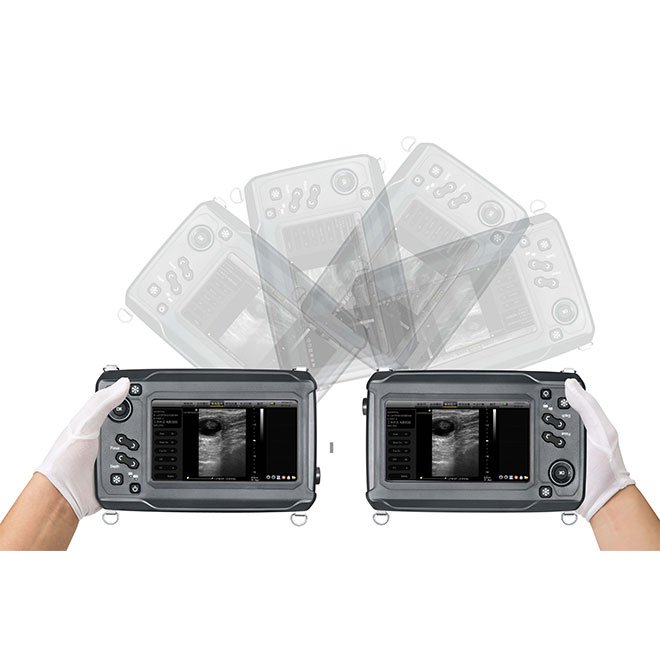

4. Rotate Screen：You can operate the ultrasound system either in left hand layout or right hand layout. It can automatically adapt to two different layouts when you rotate it.
5. Touch Screen：The first Touch Handheld Ultrasound Scanner Systems, very easy using like mobile phone.

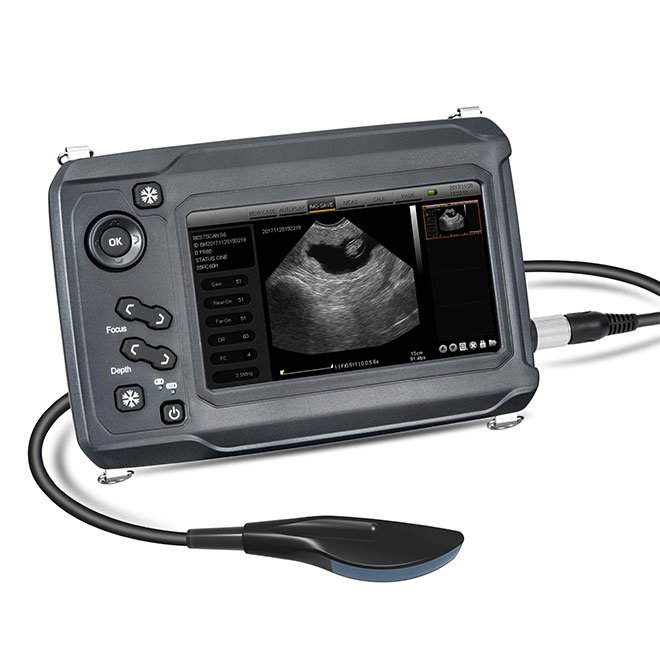

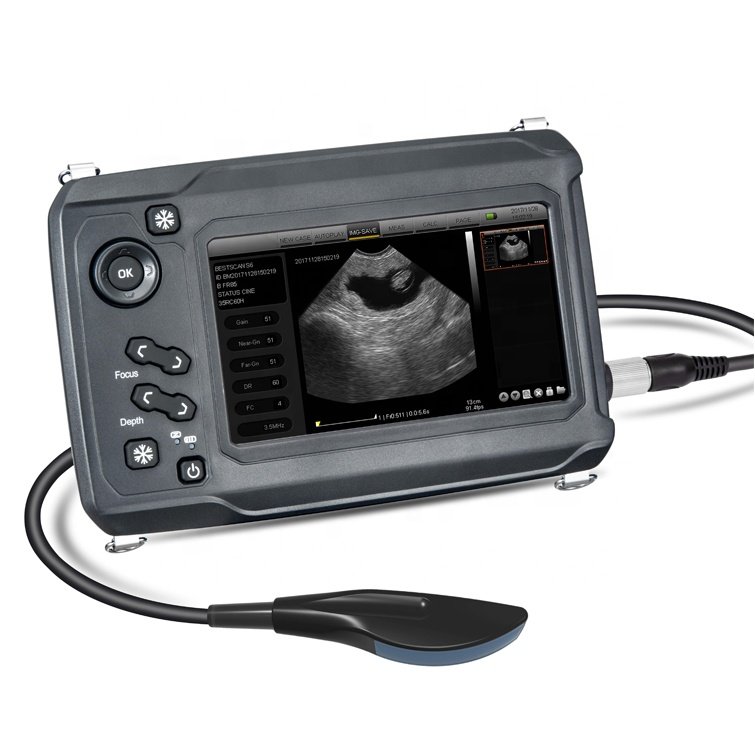

Rectal Convex Probe(wide field of view and deeper penetration)+ Works with sizes of IFR™ Probe Introducer;
6. Patent design: Rectal Linear Probe + Works with sizes of IFR™ Probe Introducer;Hood sheath:Using hood sheath sunlight readable
7. Modular software: Easy for upgrade, free lifetime upgrade to new versions
8. Storage and Export: Images saved up to 1000 frames, and export via USB/SD supported

SKU: NEUVU46 Categories: ,

Physical Specification

System Dimension:    Height: 245mm Width: 153 mm Depth:41mm
Weight:1.2 kg (2.6 lbs) w.o. transducer
Materials of systems:
Fireproofing and anti‐corrosion ABS, military level
7 “ high resolution TFT color LCD

Monitor:
Resolution: 800*480
Brightness Adjustable

Touchscreen:
Fully resistive touch screen

Physical channels:16
Transducer element: 128

Power:
System operates via AC power(Power supply) & battery
Model:MANGO‐BMV‐12AD‐S
Voltage: 100‐240VAC

AC Adapter:
Battery: (optional)
Frequency: 50/60 Hz
Currency: 2.8A
Output: 15V
Model: LY606090
Lithium‐Ion, 11.1V , 5000mAH
Charge to Full: 6 hours
Max Duration:4.5 hours real-time scan *
vary on the configuration and different working condition, for more details to contact the sales.
Temperature: 0‐40 °C



1. Environmental rating: With IP67 waterproof protective case; IP67 (probe head),IP45 (main unit)
2. Battery: Continuous scan greater than 9 hours with 2 batteries, replaceable battery design
3. Grid for estimation: With grid on the image area, you can easily estimate the size of the target substance like follicle, fertilized egg etc
4. Rotate Screen：You can operate the ultrasound system either in left hand layout or right hand layout. It can automatically adapt to two different layouts when you rotate it.
5. Touch Screen：The first Touch Handheld Ultrasound Scanner Systems, very easy using like mobile phone. Rectal Convex Probe(wide field of view and deeper penetration)+ Works with sizes of IFR™ Probe Introducer;
6. Patent design: Rectal Linear Probe + Works with sizes of IFR™ Probe Introducer;Hood sheath:Using hood sheath sunlight readable
7. Modular software: Easy for upgrade, free lifetime upgrade to new versions
8. Storage and Export: Images saved up to 1000 frames, and export via USB/SD supported
Specification
Display:
7 “ high resolution TFT color LCD
Mode:
B, M, 2B, B/M, 4B
Main frequency:
2‐12Mhz
Measurement:
distance, area, OB, backfat, lean rate, etc
Battery driving time:
about 4.5 hours (Option)
Transducer Type:

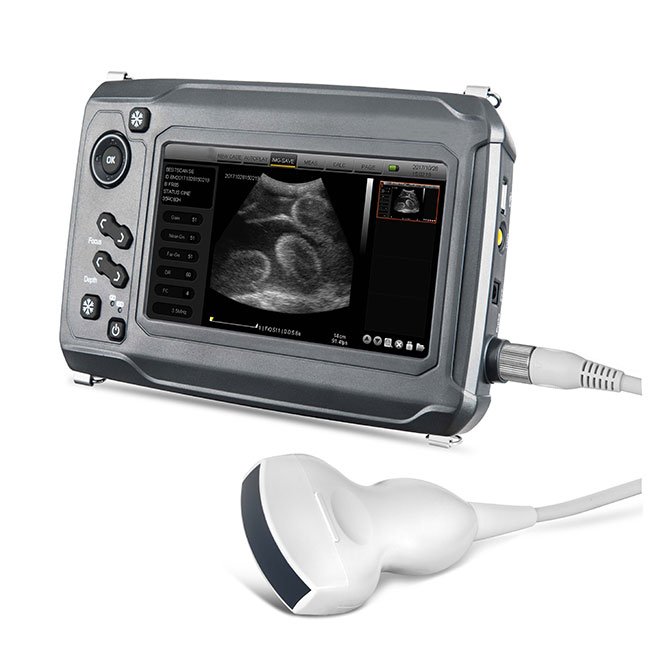

Convex Array,Linear Array,Rectal Linear Array
Scanning depth:
up to 300mm
Transducer element:
128
Physical channels:
16
