Diagnostic Ultrasound Scanner for Vet NEUVU24
$1,995.00$2,390.00 (-17%)
Application effectiveness:
Pregnancy test with B ultrasound increases the accuracy rate; MSLVU24 can check whether the pig is pregnant or not as early as 18 days after mating, avoiding the waste of non-pregnant feed. At a rough estimate, this action can directly save about 1000 USD feed cost for farm for every 100
head of the sow. Indirect economic benefits: increase the litter size, enhance productivity, find disease and epidemic situation timely, etc.
Function features:
.Display mode: B、2B, 4B, B/M, M, total 5 kinds
.100 frames permanent storage
.Local zooming
.Eight internal pseudo colors(incl. B/W)
.OB measurement: EDD and GA for swine, ovine and canine etc.
.OB report
.Flash card storage
.Dual power supply, equipped with high capacity lithium battery, driving the unit more than 6 hours

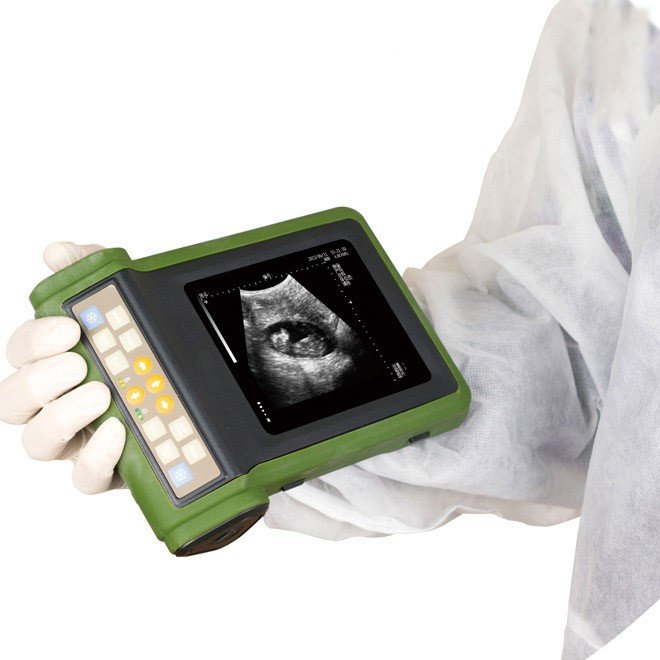

.Available for left/right hand alternative use, eliminating operate fatigue.
Application:
Pregnancy diagnosis
.MSLVU24 can check whether the pig is pregnant 18 days later after mating or not. Comparing
with traditional method, you can get non-pregnant pigs about 12 days earlier
Diagnosis towards fetus
.Through the measurement the fetal heart rate to judge whether the fetus is dead or
mummy
Diagnosis of sow uterine function
.Diagnose sow reproductive disturbance diseases: Pyometra, mucometra, etc.
Technical Specification:
Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
5.7 “high resolution color LED display, high brightness, high contrast, wide visual Angle, suitable for outdoor
Language: Chinese/English switchable.
Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine—7 kinds, total 27 pcs of body marks with probe position.
Display mode：B、2B、4B 、B/M、M, total 5 kinds.
Gain range:0~127dB
Intelligent TGC control. Near-field：0～-31dB；Far-field：0～31dB
Dynamic range: 27~90dB
Gray : 256
Magnification：0.8、1.0、1.2、1.6、2.0, total five kinds；
Frequency conversion：2 kinds
Frame correlation：0、1、2、3 total 4 kinds.
Image post-process adjustment：0、1、2、3,total 4 kinds.
Local zoom.
4 grades depth adjustment, maximum display depth is 200mm.
Image horizontal/ vertical reverse, left/right reverse.
Pseudo-color: 8 kinds (incl. B/W).
Permanent image storage: 100 frames.
USB disk storage function
Puncture guiding function,（ 2 guiding lines, angel and position adjustable）
Equipped with lithotripsy software, realize real-time positioning measurement.
Energy saving function.
Character brightness: choose from 160、192、224、255 for brightness.
Keyboard tone：2 kind (open, close）；
Dual-mode TV output :ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.
Net weight: 1.1KG
Main unit size: 212mm*154mm*58mm(length x width x height)
Image storage:
Permanent image storage: 100 frames.
USB port support one-key storage image to USB.
Measurement and analysis:
General measurement: distance, Perimeter, area (trace method, ellipse method), volume, etc.
Cardiac measurement: depth, slope, heart rate, time.
OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
OB report function
Power supply:
Dual power supply. Power：AC110/230 -15％～＋10％(self-adaption supply voltage) 60/50Hz±1Hz.
Battery: one pc of high-capacity lithium Battery( 5200MAh) ,more than 6 hours work.
External devices:
Color laser printer. Directly print various image and reports.
Thermal printer （Sony UP897MD, Mitsubishi P93W-Z）
Standard configuration：
Main unit: 1 pc

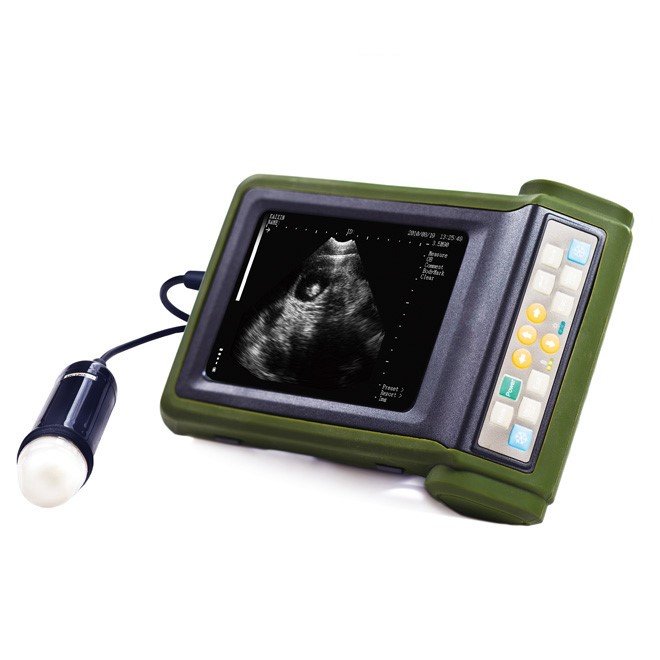

3.5MHz waterproof mechanical sector probe : 1 pc.
Power adapter: 1 pc
Internal battery : 1 pc
The leather Case: 1 unit
Green soft rubber coat: 1 pc

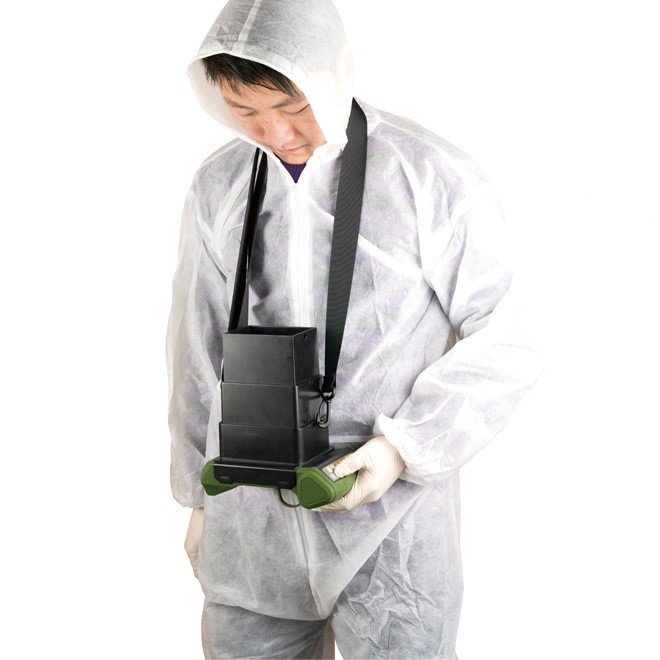

Sunshine cover : 1 unit (A,B,C three sections adjustable)
Black plastic suitcase : 1 pc
Base Charger, belt, probe socket spatula: 1 pc for each.
Optional configuration:
Thermal printer （Sony UP897MD, Mitsubishi P93W-Z）.
Battery（5200mAH）
Color laser printer Specified models: HP Color LaserJet CP1515n、HP Color LaserJet CP1525n）
