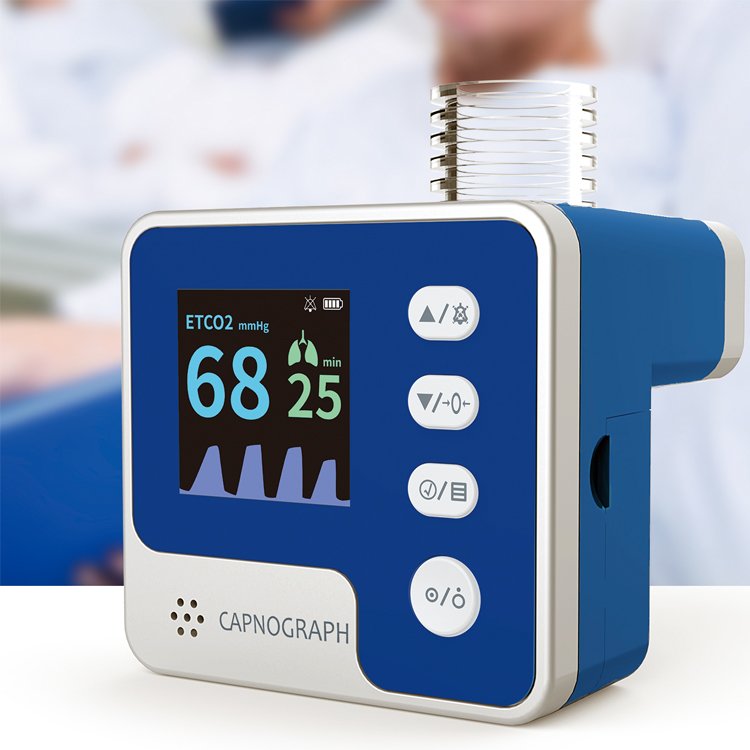

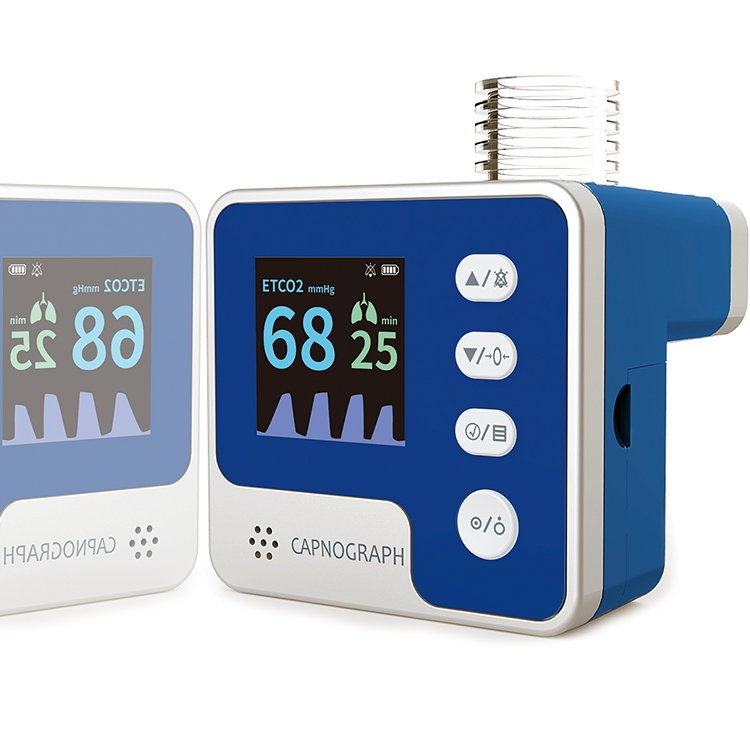

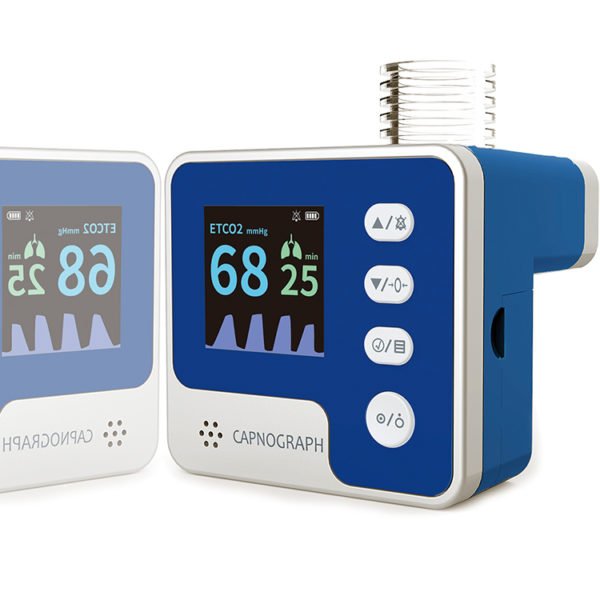

Handheld Portable ETCO2 Capnograph Monitor CA10M
- Handheld portable ETCO2 capnograph monitor for end-tidal carbon dioxide measurement
- Accurate respiratory rate measurement for adults, pediatrics, and neonates
- Over-limit alarm for end-tidal CO2 and respiration rates to enhance patient safety
- Low battery alarm function ensures consistent monitoring
- Compact dimensions of 55×52×59mm and lightweight at 97g with batteries
- User-friendly design with an easy-to-read display
- Versatile application for pre-hospital emergency, ICU, and operating rooms
- Measurement range for CO2: 0~150mmHg with high precision
- Operates in temperatures from 5℃ to 40℃ and relative humidity of 30% to 75%
- Includes user manual and optional neonate gas path adapter for versatility
- SKU
- CA10M
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Handheld Portable ETCO2 Capnograph Monitor CA10M
Compact, handheld capnograph for real-time end-tidal CO2 and respiratory rate measurement. Designed for pre-hospital emergency, ICU, and operating room use across adult, pediatric, and neonatal populations with high-precision monitoring and intuitive alarms.
Clinical overview
The CA10M capnograph employs mainstream capnography methodology to measure end-tidal carbon dioxide (ETCO2), airway respiration rate, and related parameters. By detecting pulmonary ventilation function, it reflects circulation and pulmonary blood flow conditions, while indirectly assessing alveolar ventilation. This makes it ideal for pre-hospital emergency transfer, emergency departments, ICUs, operating rooms, neonatology units, and respiratory departments.
The device connects to the patient's respiratory tract via an airway adapter and breathing tube, providing continuous, non-invasive monitoring across adult, pediatric, and neonatal populations. Its compact form factor (55×52×59 mm, 97 g with batteries) and user-friendly display enable rapid deployment in time-critical settings without compromising measurement accuracy or clinical reliability.
Key features & surgeon benefits
Precise ETCO2 & RR Detection
- CO2 range 0–150 mmHg with 1 mmHg resolution
- Respiration rate 2–150 rpm with ±1 rpm accuracy
- Tiered accuracy: ±2 mmHg (0–40), ±5% (41–70), ±8% (71–100), ±10% (101–150)
Enhanced Patient Monitoring
- Over-limit alarms for ETCO2 and respiration rate thresholds
- Low battery alarm ensures uninterrupted monitoring
- Type BF applied part; IPX2 protection against liquid ingress
Compact & Lightweight Design
- 55×52×59 mm dimensions fit easily into emergency kits
- 97 g weight (with batteries) for rapid deployment
- DC 3V operation (2 AAA batteries) requires no external power
Multi-Population Support
- Adult, pediatric, and neonatal gas path adapters
- Operates 5–40°C, 30–75% relative humidity
- Suitable for pre-hospital, ICU, OR, and neonatology settings
Technical specifications
| Indications | Pre-hospital emergency, emergency department, ICU, operating room, neonatology, respiratory monitoring |
|---|---|
| Patient Population | Adult, pediatric, and neonatal |
| CO2 Measurement Range | 0–150 mmHg, 1 mmHg resolution |
| CO2 Accuracy | 0–40 mmHg: ±2 mmHg; 41–70: ±5%; 71–100: ±8%; 101–150: ±10% |
| Respiration Rate Range | 2–150 rpm, 1 rpm resolution, ±1 rpm accuracy |
| Physical Dimensions | 55×52×59 mm |
| Weight | 97 g (with batteries) |
| Power Supply | DC 3V (2 AAA dry batteries), ≤1 VA input |
| Operating Temperature | 5–40°C |
| Relative Humidity | 30–75%, no condensation |
| Atmospheric Pressure | 700–1060 hPa |
| Protection Class | Type BF applied part; IPX2 liquid ingress protection |
| Device Type | Internally powered equipment |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CA10M Monitor | Handheld ETCO2 capnograph with display and controls | 1 |
| Adult Gas Path Adapter | Mainstream airway adapter for adult patients | 1 |
| Breathing Tube | Connection tubing for respiratory circuit | 1 |
| User Manual | Operating instructions and clinical guidelines | 1 |
| Neonate Gas Path Adapter | Optional adapter for neonatal applications | Optional |
Get in touch for pricing & availability
Contact our clinical sales team to discuss the CA10M capnograph, request a demonstration, or place an order. We provide rapid delivery and comprehensive support for all clinical environments.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →
TV80 Portable Transport Ventilator with Advanced Patient Monitoring, Oxygen Management, and Telemedicine Capabilities
- Integrated transport ventilator, patient monitor, infusion pump, and oxygen cylinder for efficient patient transfers. - ICU-level ventilation support for both invasive and non-invasive therapies, adaptable for patients of all ages. - Continuous monitoring of vital signs with real-time data transmission to hospital systems. - Plug-and-play setup, eliminating the need for cable reconnections during transport. - Lightweight design at only 6.5kg, featuring a long-lasting battery with over 11 hours of operation. - Durable and waterproof, designed to withstand extreme environmental conditions.
TV50 Transport Ventilator - Portable Turbine-Driven Patient Ventilation Solution with Advanced Features
- Compact and Portable : The TV50 Transport Ventilator features a lightweight and compact design, making it ideal for mobile patient care. - High-Performance Turbine : Equipped with a built-in turbine providing peak flow ≥210L/min for effective non-invasive ventilation support. - Intuitive Interface : User-friendly 7-inch HD capacitive touch screen with an interface similar to bedside ventilators for ease of operation. - Versatile Ventilation Modes : Supports invasive, non-invasive, and O₂ therapy, including AMV and emergency ventilation modes for diverse clinical scenarios. - Real-Time Monitoring : Seamless integration for transmitting patient data to central monitoring systems, enabling remote patient management during transport. - Durable and Reliable : Designed for demanding environments with drop protection, dustproof, and waterproof features, ensuring consistent performance.
SV800/SV600 High-End Ventilator with Advanced User Interface and Intelligent Decision Support Tools for Clinical Efficiency and Lung Health Monitoring
- High-end ventilator with 1080P HD widescreen and intuitive customized user interface. - Features PulmoSightâ„¢ for real-time monitoring of resistance, compliance, and spontaneous breathing status. - User-configurable interface allows personalization of frequently-used functions for increased efficiency. - Dynamic graphic guidelines for easy pre-use checks and parameter settings to minimize errors. - Minimal maintenance required with organized components for easy accessibility. - Expandable capabilities with plug & play modules and integration with clinical information systems.
SV70/SV70S Non-Invasive Ventilator with EasySyncâ„¢ Technology and Advanced Decision-Support Tools for Enhanced Patient Comfort and Clinical Efficiency
- Professional non-invasive ventilation with EasySyncâ„¢ technology for optimal patient comfort. - Real-time PEEPi and esophageal pressure monitoring for accurate patient assessment. - 15.6-inch capacitive touch screen for intuitive and efficient operation. - Dedicated mask storage slot to prevent cross-infection. - Compatible with mainstream masks, featuring a patient leakage indicator for easy adjustments. - Connects to central monitoring systems via cable or Wi-Fi for enhanced clinical efficiency.

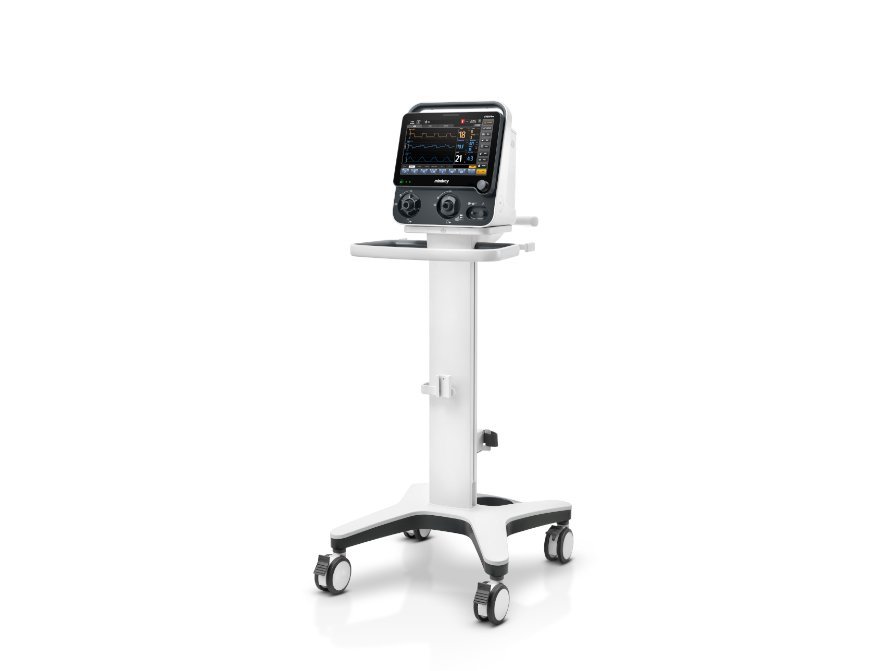

SV300 Pro Ventilator - Compact Intelligent Adaptive Respiratory Support Device for ICU and Patient Transport
- Compact and powerful design, weighing under 10kg for easy transport. - Features a frameless capacitive screen for precise touch and easy cleaning. - Detachable and autoclavable valves minimize cross-contamination risks. - Comprehensive ventilation modes and decision-support tools suitable for ICU environments. - Intelligent ventilation with Adaptive Minute Ventilation (AMVâ„¢) and IntelliCycleâ„¢ for enhanced patient-ventilator synchrony. - Includes CPRVâ„¢ mode for efficient CPR support and integrated COâ‚‚/SpOâ‚‚ monitoring.
SV300 State-of-the-Art Ventilator for Neonate, Pediatric, and Adult Care
- State-of-the-art ventilator designed for neonate, pediatric, and adult patients. - Compact design with powerful capabilities for diverse acuity levels. - Intuitive user interface for easy configuration and operation. - Comprehensive ventilation modes and features typically found in ICU ventilators. - Supports advanced functions like volumetric COâ‚‚ measurement and weaning indicators. - Autoclavable valves and flow sensor for enhanced patient safety.

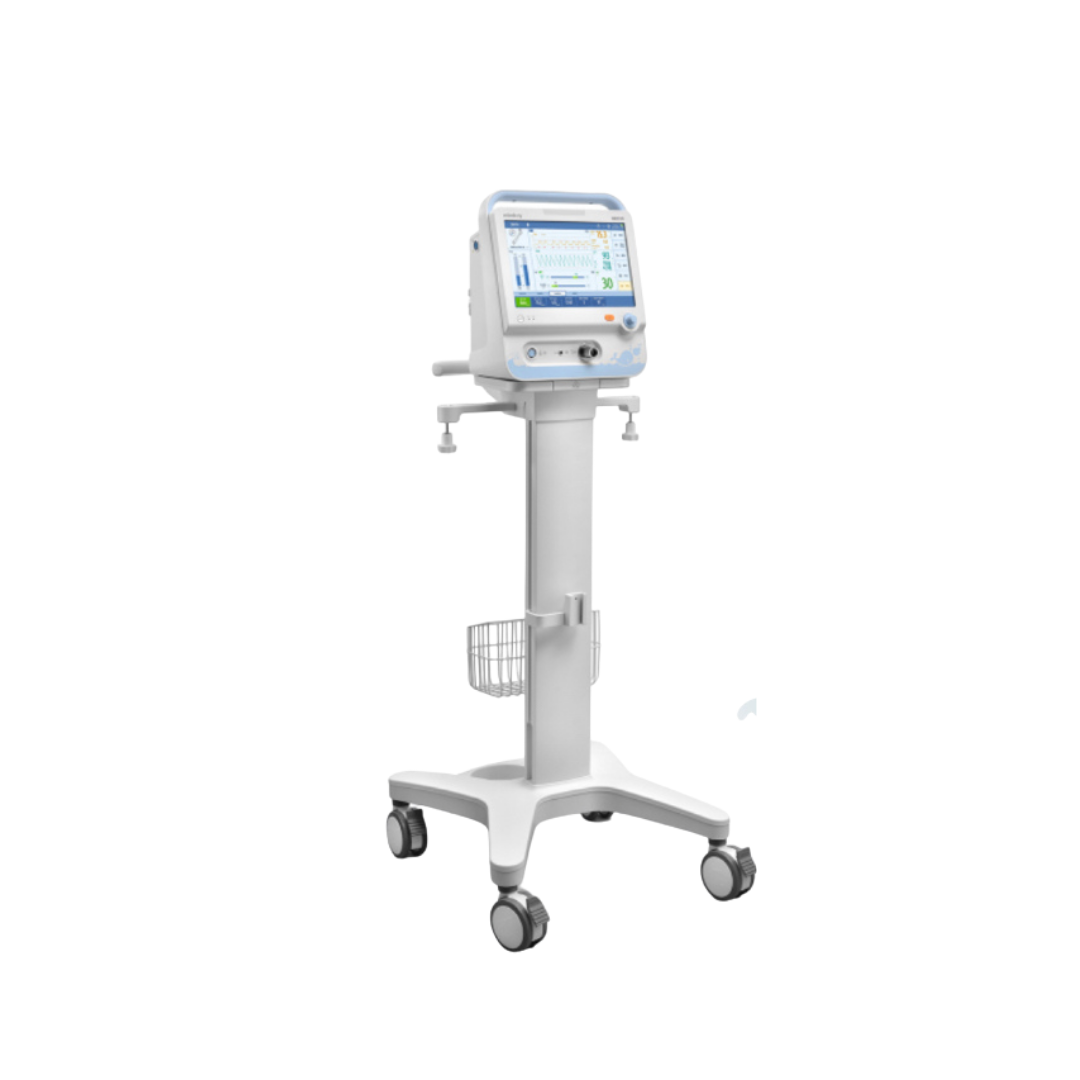

NB350 Neonatal Noninvasive Ventilator with EasySyncâ„¢ Technology for Enhanced Respiratory Support
