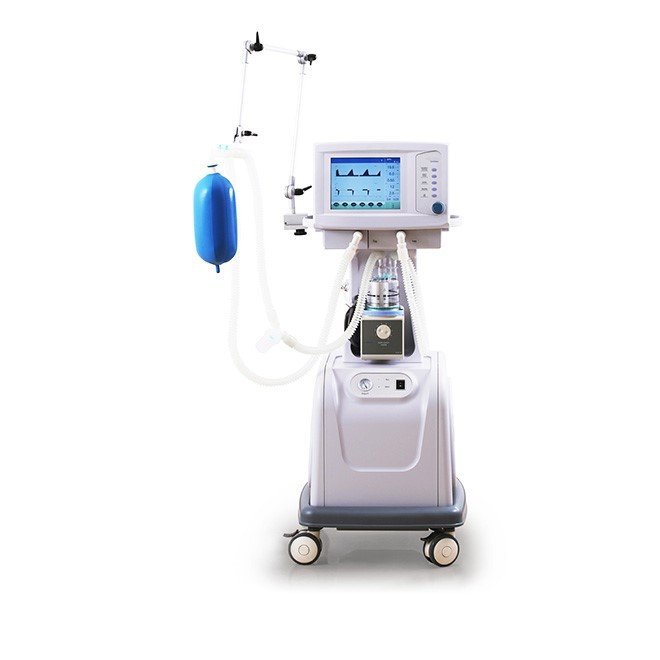

ICU Ventilator NEUVM19
$17,790.00$19,900.00 (-11%)
Specifications
12.1 inch large screen with desirable color schemes
Easy to operate
Support adult and pediatric ventilation mode
Multi-mode ventilation function (VCV, SIMV, PSV, PCV, CPAP, Manual,SIGH)
NON-INVASIVE VENTILATION IS AVAILABLE FOR OPTION
Intelligence operating system
Air compressor support
Self testing and calibration
Pressure range 5-80 mbar
Physical specifications Rispriation Rate Range 1-99bpm (1-40bpm under SIMV)
Dimensions: 45*55*140cm I:E Range 4:1-1:8
Weight: 65kg Ptrigger Range -20-20cmH 2 O
Casters: Central brake with lock Apnea Ti Range 0-6s
Screen: 12.1 inch PEEP
Display Colour LCD Type Integrated, Electronic control
Display graphics Waveforms of P-T, F-T Range 0-30cmH 2 O
Loops Optional: P-V, F-V Alarm Limits
Screen control NEC, no dead spot at any angle Visual
No tidal volume, MV,Paw, FiO 2 limitation
O 2, Air failure, AC power failure, backup low
Air compressor specifications Audio No tidal volume, MV,Paw, FiO 2 limitation
Power AC 220V±10%, 50Hz±2% Pipeline supply
Output pressure 0.4±0.1MPa Gas configuration O 2 , Air
Noise ≦50dB Pipeline input range 280-600kPa
