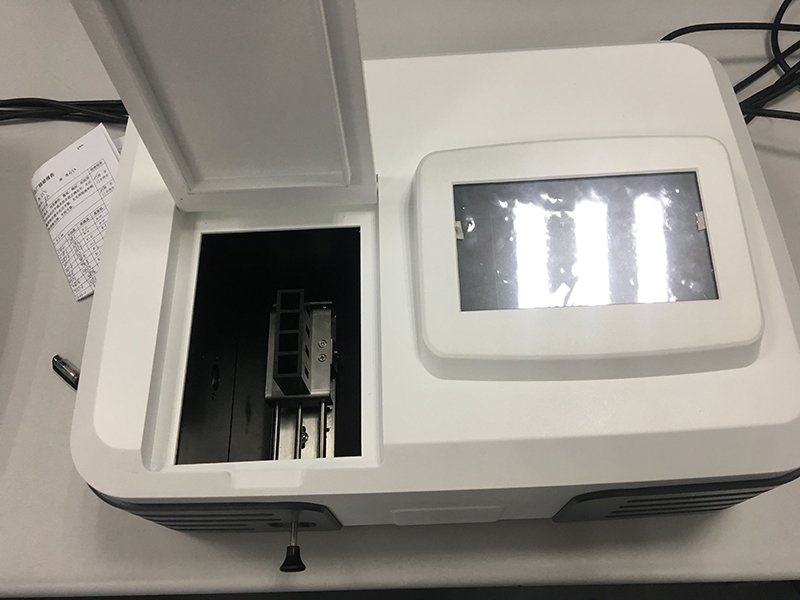

Portable Uv/vis Spectrophotometer NEUUV15
$6,390.00$6,900.00 (-7%)
Intelligent Alarm Function
System Encryption Function
Display several groups of data at the same time for direct reading
New Panel with touch screen
Module Design for easy operation
Specifications
Touch Screen Portable Uv/vis Spectrophotometer NEUUV15
Main Characteristics : Intelligent Alarm Function System Encryption Function Display several groups of data at the same time for direct reading New Panel with touch screen Module Design for easy operation
Touch Screen Portable Uv/vis Spectrophotometer NEUUV15
Features & Functions:
1)800×480 touch screen display which shows clear graphs
2)Stand-alone system which can realize spectrum measurement, quantitative ,wavelength scanning ,kinetics,
3)system setting directly on the instrument
4)The instrument uses a rigid 8mm die-case aluminum base as its optical mount to ensure instrument stability and reliability .
5)Automatic system calibration and positioning to recover deviation after long-time use
6)Imported main optical spare parts to ensure low stray light ,stability and reliability
7)With powerful memory ,can print data and graphs in A4 format directly by connecting to a printer
8)Data can export to USB directly .
Touch Screen Portable Uv/vis Spectrophotometer NEUUV15
| Model | NEUUV15 |
| Wavelength range | 190-1000nm |
| Spectral bandwidth | 2nm |
| Wavelength accuracy | ±0.5nm |
| Wavelength repeatability | ≤0.2nm |
| Photometric accuracy | ±0.2%T(0-100%T) |
| ±0.002Abs(0-0.5Abs) | |
| ±0.004Abs(0.5-1.0Abs) | |
| Photometric repeatability | ≤0.15%T(0-100%T) |
| 0.001Abs(0-0.5Abs) | |
| 0.002Abs(0.5-1.0Abs ) | |
| Photometric Range | 0-200%T, -4.0-4.0A,0-9999C-0.3-3A,0-200%T |
| Baseline Flatness | ±0.001A |
| Noise | ±0.0005A |
| Stray light | ≤0.05%T@220nm,360nm≤ 0.3%T |
| Stability light | ±0.001A/h(500nm) |
| Display | 800*480 touch screen |
| Detector | Silicon photodiode |
| Output | USB |
| Printer port | USB port |
| Lamps | Imported D2 Lamp &W Lamp |
| Power requirements | AC220v/50Hz or 110V/60Hz |
| Dimension | 460*380*180mm |
| Weight | 20kg |
