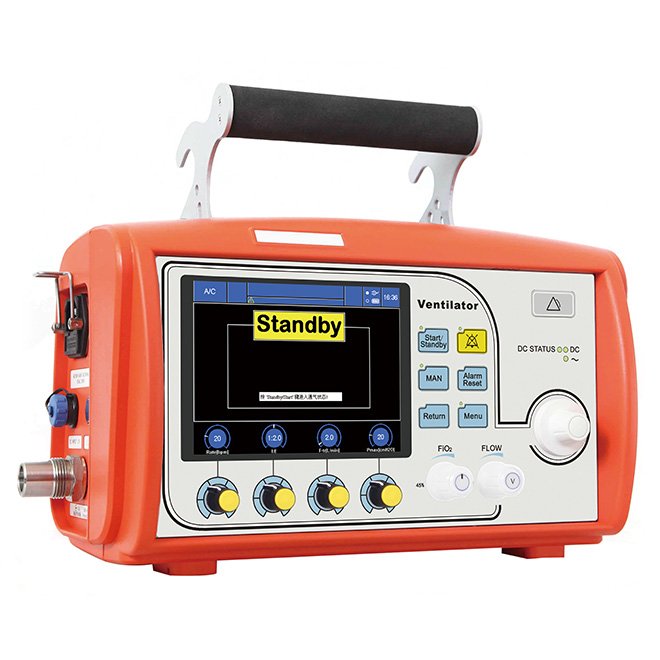

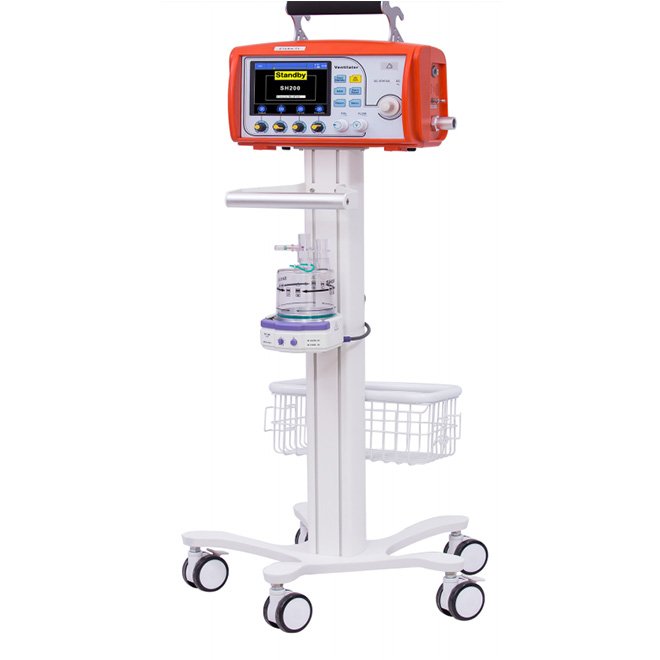

Portable Ventilator NEUPV03

Specifications

Electronic Specification

Pneumatically driven electronically controlled

Backup battery ≥2H

Power supply :  AC110-240V, 50-60Hz

Ventilation Specification

Ventilation Mode : A/C，SIMV，SPONT，SIGH，MAN

VT  50～1500 mL

Frequency 4～80 bpm

I：E  3:1～1:5

Inspiratory time 0.2～10s

Pressure trigger sensitivity (PEEP-20cmH2O)～PEEP 0 cmH2O

Flow trigger sensitivity 1～20 L/min

PEEP  0～20 cmH2O

FiO2  45～100%

Mechanical PEEP (Optional)

Display:  5.6”TFT color Screen

Monitoring: VTI,VTE,MV,FIO2,Frequency,Fspn, PEEP, Ppeak, PmeanWaveform : P-T, F-T, V-T,

Loops :  P-V loop, V-F loop

Alarm

VTE Low/ High

MV  Low/ High

FIO2 Low/ High

Paw Low/ High

Frequency  Upper: 1～100bpm

Low: 0～99bpm

Continuous airway pressure high

Apena

O2  failure

AC Power Source failure

Low battery

Battery exhausted

Alarm silence time: ≤120 s

Physical Specification

volume：350mm×260mm×160mm；

weight：6kg
