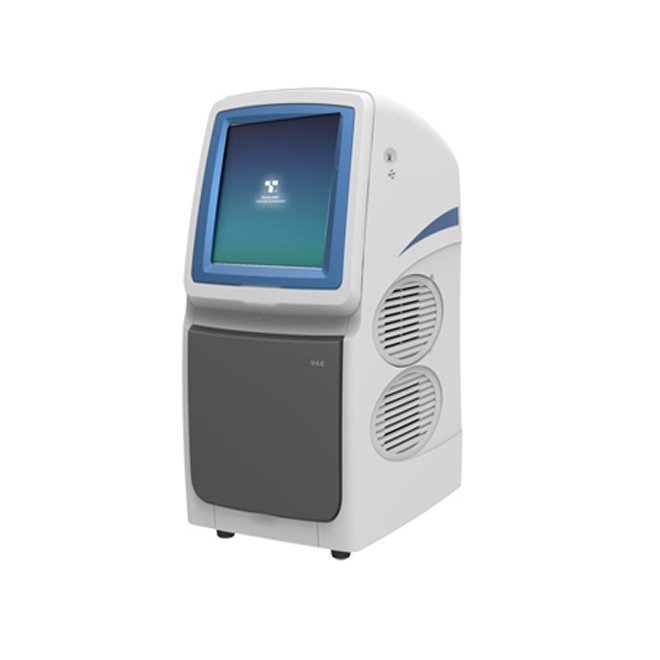

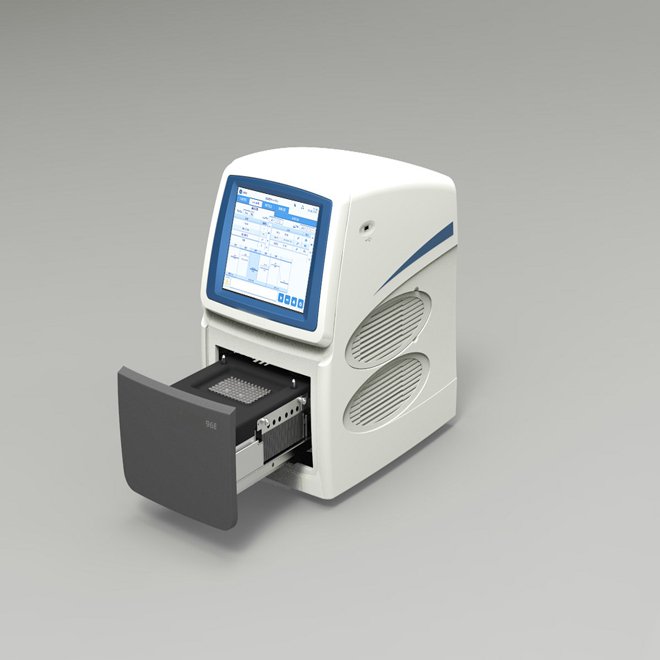

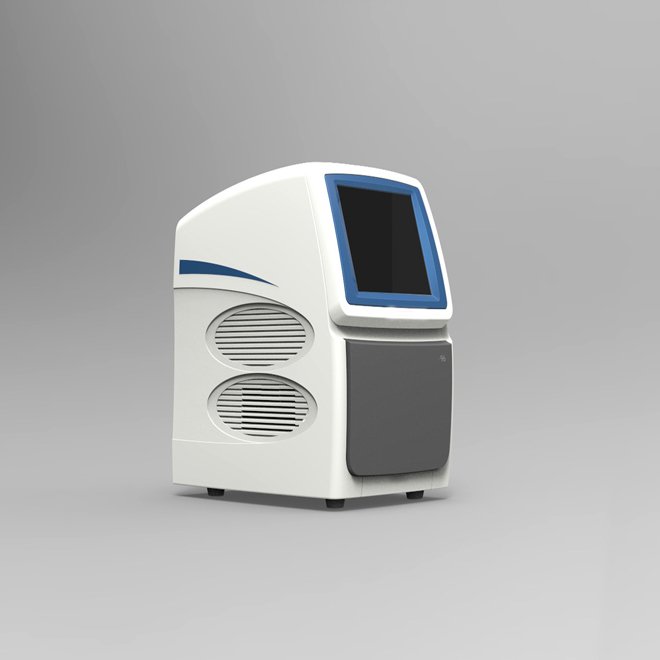

Real-Time PCR System NEUPCR15E

Features of Real-Time PCR System NEUPCR15E:

Sample capacity(wells):    96 Reaction Volume:0-100 μL

Consumables:0.2ml 96-well Plates（unskirt）; 0.2ml 8-strip tubes ,0.2ml PCR single tube(Optical flat cap,clear，frosted，white tube)

Temperature range :0°C-100°C

Heating/cooling method:

Peltier Max heating rate :6.1°C/sec

Average heating rate :4.5°C/sec

Max cooling rate :5.0°C/sec

Average cooling rate :2.8°C/sec

Temperature accuracy :±0.1℃

Temperature uniformity :±0.1℃

Gradient Range:1°C-40°C

Gradient block:12 row

Special temperature portocol:Gradient PCR,Long PCR,Touch Down

PCR Temperature range:  Room Temperature–110°C

Excitation Source:6

LEDs Detector:Photodiode

Detection Position:Excitation and scan at top

Detection method:6 channels scanning at the same time, no edge effect.

Detection time:7 seconds for 96 wells for all channels

Range of excitation/ emission wavelengths (nm): 1  465 /510 (FAM,SYBR Green I，SYTO9，EvaGreen，LC Green) 2  527/ 563 (HEX,VIC,TET,JOE) 3  580 /616 (ROX,Texas Red) 4  632/ 664( Cy5) 5  680 /730 (Alexa Fluor680) 6  465 /616 (FRET) Probe:Taqman Probe,Molecular beacons probe,Scorpion probe ,FRET Multiplexing:Up to 6 targets Fluorescence Linearity    :r≥0.990 Fluorescence Dynamic Range:Adjustable Data Analysis modes: Qualitative analysis,Absolute quantification,Relative,quantification,Genotyping analysis,Endpoint analysis,Melt curve analysis, High Resolution Melting Control modes: 1.10.4′ touch screen 2. PC direct control 3. WLAN control(One PC can control max 10 units, and device can be controled by any PC in the WLAN) Sample Drawer:Touch sreen commend Data Stroage:Upload and download through USB disk,1000 results can be stored  in machine Power failure protection:Automaticly start running experiments after power supply, no need wait PC software Customize Report:Templetes reserved ,report can customized Administration Management:Administrator can set funtions limts for users Transport Locker:Automaticly detect transport locker Fault Management:Fault report and analysis, solution instruction LIS connection:CSV,Excel,TXT format data output,open port for LIS connection PC operating system:Win 7, Win 10 Communication Port: 1 ethernet and 3  USB Footprint(WxDxH):355mm X 480mm X 485mm Weight :30kg Power usage:AC 100 to 125 V / 200 to 240 V (50/60 Hz). power consumption:900VA Work environment:Tempereture:10°C~30°C  Humidity:20%~85%
