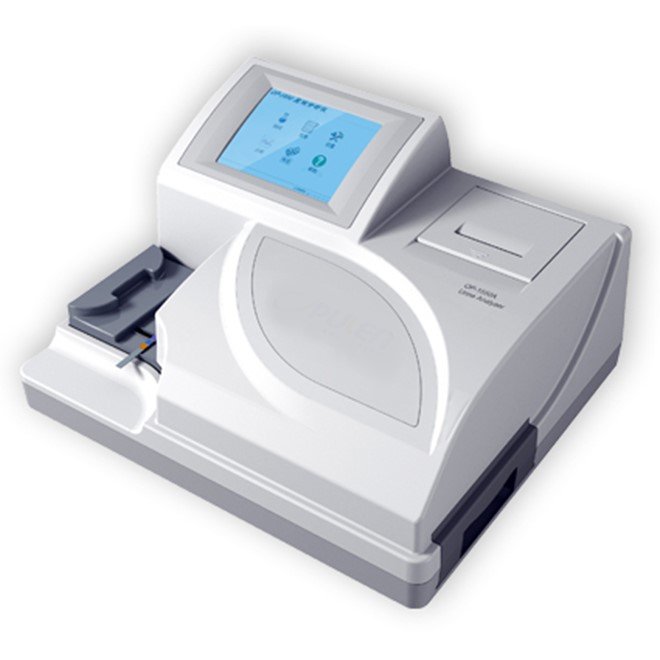

Urine Biochemistry Analyzer NEUUA05-1
- High-speed testing with results in just 7 seconds per test
- User-friendly LCD display with a tactile touch panel
- Automatic gathering of used test strips for convenience
- Equipped with a high-brightness, long-life LED light source
- High-sensitivity light sensor with excellent anti-interference
- Inbuilt thermal printer for easy report printing
- Supports RS-232 interface for data exchange and software updates
- Stores up to 2000 test samples for efficient data management
- Adjustable sensitivity for each parameter via software interface
- Compact design with dimensions of 390x330x210 mm and lightweight at 6 kg
- SKU
- NEUUA05-1
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Urine Biochemistry Analyzer NEUUA05-1
High-speed automated urine analysis with results in just 7 seconds per test. Reflectance photometry technology with 10–11 parameter detection, built-in thermal printer, and data storage for up to 2000 samples. Ideal for clinical laboratories, urgent care, and point-of-care testing environments.
Clinical overview
The NEUUA05-1 is a fully automated urine biochemistry analyzer designed for rapid, accurate screening in clinical laboratories and point-of-care settings. Using reflectance photometry technology, the device reads color changes on test strips across three wavelengths (470nm, 525nm, 625nm) to deliver semi-quantitative analysis results for up to 11 parameters including glucose, bilirubin, specific gravity, pH, ketones, blood, protein, urobilinogen, nitrites, and leukocytes.
With a processing speed of 500 samples per hour and results available in just 7 seconds per test, the analyzer significantly reduces turnaround time while maintaining high analytical precision. The built-in thermal printer enables immediate report generation, and the 2000-sample storage capacity supports efficient batch workflow management. RS-232 connectivity allows seamless integration with laboratory information systems and external printers, making it an ideal solution for high-volume testing environments.
Key features & surgeon benefits
Rapid Analysis
- 7-second result time per test
- 500 samples per hour processing capacity
- Minimal turnaround time for clinical decision-making
Automated Operation
- Automatic used strip gathering for convenience
- User-friendly LCD display with tactile touch panel
- Built-in thermal printer for immediate report generation
Precision Optics
- High-sensitivity light sensor with excellent anti-interference
- Coefficient of variation ≤1% for repeatability and stability
- Linear correlation coefficient ≥0.995
Connectivity & Storage
- Stores up to 2000 test samples for efficient record-keeping
- RS-232 interface for PC integration and software updates
- Adjustable sensitivity for each parameter via software
Technical specifications
| Testing Principles | Reflectance photometry; color-based semi-quantitative analysis |
|---|---|
| Parameters Detected | GLU, BL, SG, PH, KET, BLD, PRO, URO, NIT, LEU (10–11 parameters) |
| Testing Wavelengths | 470nm, 525nm, 625nm |
| Testing Speed | 500 samples per hour; 7 seconds per test |
| Stray Light | Relative intensity ≤1% |
| Linearity | Linear correlation coefficient ≥0.995 |
| Repeatability | Coefficient of variation CV ≤1% |
| Stability | CV ≤1% during 8 hours of operation |
| LCD Display | 240×64 dot-matrix LCD screen |
| Report Storage | Up to 2000 test results |
| Output Options | LCD display, RS-232 serial port, embedded 57mm thermal printer (English/Chinese), external parallel printer support |
| External Ports | RS-232C for PC connection; 25-pin Centronics port for external dot-matrix printer |
| Working Voltage | AC 100–110V/240V, 50/60Hz |
| Power Consumption | ≤45W |
| Operating Temperature | 10–30°C |
| Relative Humidity | ≤70% |
| Dimensions | 390×330×210 mm |
| Weight | 6 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer Unit | NEUUA05-1 Urine Biochemistry Analyzer with integrated thermal printer | 1 |
| Power Cable | AC power supply cable (100–110V/240V, 50/60Hz) | 1 |
| RS-232 Cable | Serial interface cable for PC connectivity | 1 |
| User Manual | Operating instructions and maintenance guide | 1 |
| Thermal Paper | 57mm thermal printer paper roll (starter supply) | 1 |
