Specifications

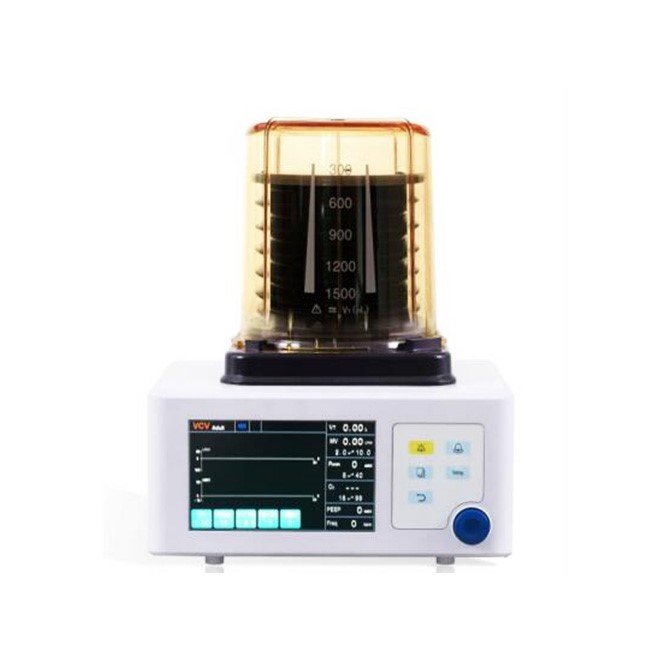

Provide A/C ventilation to the patient in the process of operation or in recovery
after the operation.
Applied for adult and pediatric
Microprocessor controlled ,integrated anesthetic ventilation system
7 inch TFT display screen
Safety Good air tightness, high reliability
Electronically controlled, pneumatic driven
Patient spectrum: pediatric to bariatric
Ventilation mode: IPPV, SIMV, MANUAL(BAG)
Tidal volume:Adjustment range 0-1500ml
I:E ratio: 4:1-1:8
Frequency:
Adjustment range: 1-100bpm
Under IPPV and Manual mode: 4~65bpm
Under SIMV: 1-40bpm
Monitoring:
VT, MV, BPM, Paw, FiO 2 , PEEP, Respiratory Frequency, I:E ratio, Ppeak
Waveform:
Pressure- time, Flow- time
Power: AC 220V±10%, 50HZ±2%, built-in battery > 2hrs(rechargeable) 12V
Inspiratory time (TI) (at SIMV)
Adjustment range: 0.2 s ～ 6.0 s （the limit of I:E ratio ≤ 4）
Pressure trigger: － 20 cmH2O ～ ＋ 20 cmH2O
Pressure limit:
Patient airway pressure range: -2KPa~10KPa
Airway pressure monitoring range: 0~10KPa
Safety valve pressure limit: 6Kpa
Alarm: High(low) pressure alarm, High(Low) MV alarm, AC power lost alarm
