BIPAP Machine NEUVM22
- Advanced BIPAP machine for effective respiratory support
- IPAP pressure range: 4cmH2O to 30cmH2O
- EPAP pressure range: 4cmH2O to 25cmH2O
- CPAP mode available with pressure range of 4cmH2O to 20cmH2O
- Automatic frequency setting (4~30 bpm)
- Compact design with dimensions: 24.8cm(L) x 14.4cm(W) x 12.2cm(H), weight 1.2kg
- Automatic start-up/switch off feature
- Mask fall-off alarm for user safety
- Data storage for 6 months, recording pressure and trends
- User-friendly English manual included
- SKU
- NEUVM22
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
BIPAP Machine NEUVM22
Advanced non-invasive ventilation system delivering precise pressure control across BIPAP, CPAP, and spontaneous modes. Compact, portable design with integrated data logging and automatic safety features for reliable respiratory support in clinical and home care settings.
Clinical overview
The NEUVM22 is a compact, clinically validated BIPAP machine engineered for effective non-invasive ventilation across diverse respiratory conditions. With independent control of inspiratory (IPAP) and expiratory (EPAP) pressures, plus dedicated CPAP mode, it accommodates a wide spectrum of patient presentations—from obstructive sleep apnea to COPD exacerbations. The automatic frequency setting (4–30 bpm) and three sensitivity levels enable personalised therapy titration, while the integrated P-T waveform display provides real-time feedback on ventilation dynamics.
Designed for both clinical and home environments, the NEUVM22 combines portability (1.2 kg, 24.8 × 14.4 × 12.2 cm) with robust data management. Six months of pressure and trend logging supports clinical decision-making and therapy optimisation. Automatic start-up/switch-off and mask fall-off alarm enhance user safety and compliance, while dual power supply (AC 100–110V/240V or 12VDC adapter) ensures operational flexibility across settings.
Key features & surgeon benefits
Precise Pressure Control
- Independent IPAP (4–30 cmH₂O) and EPAP (4–25 cmH₂O) adjustment
- Dedicated CPAP mode (4–20 cmH₂O) for single-pressure therapy
- Automatic frequency setting with manual override capability
Intuitive Operation & Safety
- Automatic start-up and switch-off reduce user error
- Mask fall-off alarm ensures continuous monitoring
- Three sensitivity levels (I–III) for patient-specific tuning
Integrated Logging & Reporting
- 6-month data storage with 3 daily intervals
- Records pressure, trends, and therapy compliance metrics
- SmartCard configuration option for rapid setup and patient transfer
Compact & Versatile Design
- Ultra-compact: 1.2 kg, 24.8 × 14.4 × 12.2 cm
- Dual power supply: AC (100–110V/240V) or 12VDC adapter
- Ideal for home care, travel, and clinical environments
Technical specifications
| Indications | Sleep apnea, COPD, respiratory insufficiency, non-invasive ventilation support |
|---|---|
| Ventilation Modes | Spontaneous (S), Timed (T), CPAP, BIPAP, S+T (optional) |
| IPAP Pressure Range | 4–30 cmH₂O |
| EPAP Pressure Range | 4–25 cmH₂O |
| CPAP Pressure Range | 4–20 cmH₂O |
| Frequency | Automatic 4–30 bpm, OFF |
| Sensitivity | I–III adjustable |
| Waveform Display | P-T (Pressure-Time) |
| Data Storage | 6 months (3 intervals per day); records pressure, trends, date, time |
| Compensation | Automatic |
| Power Supply | AC 100–110V/240V or 12VDC (with adapter) |
| Dimensions | 24.8 cm (L) × 14.4 cm (W) × 12.2 cm (H) |
| Weight | 1.2 kg |
| Operating Conditions | Temperature 5–40°C; Relative humidity <80% |
| Storage Conditions | Temperature −10–40°C; Relative humidity <90% |
| Safety Features | Automatic start-up/switch-off, mask fall-off alarm |
| Configurations | SmartCard (optional) |
| User Manual | English (standard) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| BIPAP Machine Unit | NEUVM22 main device with integrated display and controls | 1 |
| AC Power Adapter | 100–110V/240V AC input, 12VDC output | 1 |
| Patient Tubing | Standard 22 mm diameter tubing with connectors | 1 set |
| Mask Interface | Nasal or full-face mask (as per configuration) | 1 |
| User Manual | English language instruction and safety guide | 1 |
| Quick Start Guide | Setup and basic operation reference | 1 |
Get in touch for pricing & availability
Contact our respiratory device specialists to discuss clinical requirements, bulk pricing, and customisation options. We offer rapid deployment support and comprehensive training for clinical teams.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
Veterinary Anesthesia Machine NEUBS279
- Advanced Veterinary Anesthesia Machine with 10.4” TFT LCD touch screen. - Electronic flow meter for real-time fresh gas flow monitoring. - Integration breathing circuit design for ease of use and cleanliness. - Supports multiple working modes: IPPV, A/C, PCV, SIMV, SIGH. - Safety features include vaporizer with temperature and flow compensation. - Monitors vital parameters: ETCO2, O2 concentration with high precision. - Wide usage range for animals up to 200KG. - Compact size with wooden case packing dimensions: L 680*W 740*H 1400mm. - Lightweight design with a total weight of 100KG.
Veterinary Anesthesia Machine NEUBS280
- Advanced Veterinary Anesthesia Machine designed for precise animal care - Large 7” TFT LCD screen for clear display of ventilation parameters and alarms - High precision flow meter for accurate fresh gas flow monitoring - Integrated breathing circuit for ease of use and cleanliness - Multiple ventilation modes: IPPV, A/C, SIMV for versatile applications - Safe vaporizer with temperature and flow compensation features - Comprehensive monitoring interface with real-time graphics - Suitable for animals up to 200KG in weight - Compact wooden case packaging for secure transport - High-quality construction with various performance parameters monitored
Veterinary Anesthesia Machine NEUBS281
- High precision flow meter for accurate fresh gas flow measurement - Integrated breathing circuit design for ease of use and tidiness - Vaporizer features temperature and flow compensation with self-lock function for enhanced safety - Versatile pluggable frame design for customizable operation - Suitable for a wide range of animals weighing up to 200KG - Rapid oxygen supply capability ranging from 35L/min to 75L/min - Monitors airway pressure from 0 cmH2O to 100 cmH2O - Compact packing sizes with wooden case for secure transportation - Operational gas source: O2, with adjustable pressure between 280kPa-600kPa - Compatible with various anesthesia gases including Halothane, Enflurane, Isoflurane, and Sevoflurane

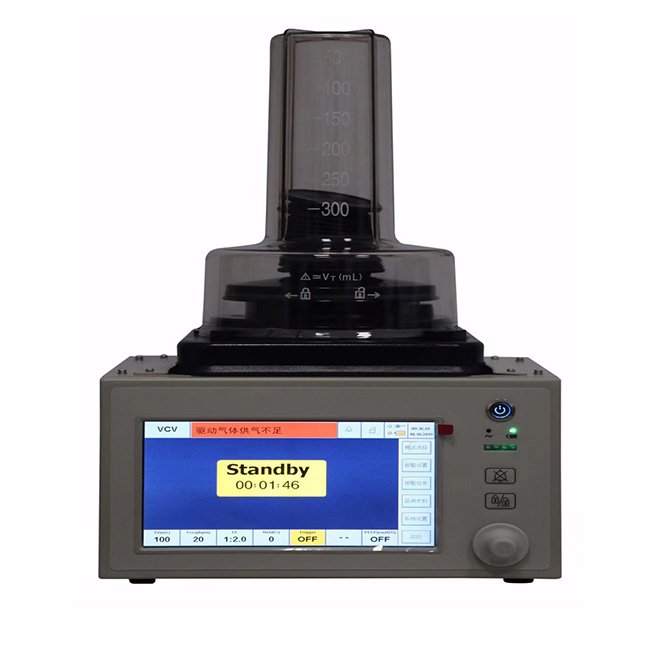

Veterinary Anesthesia Ventilator NEUBC268
