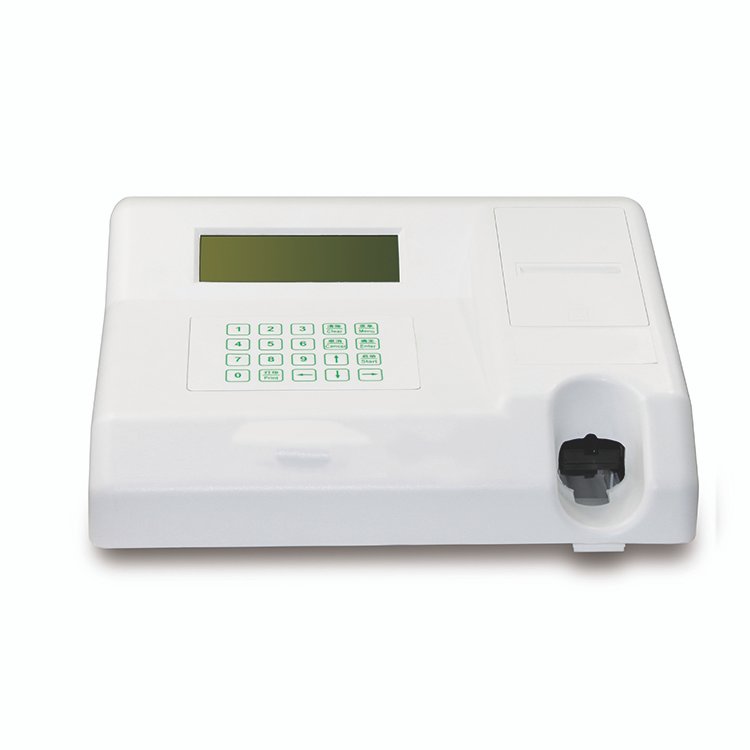

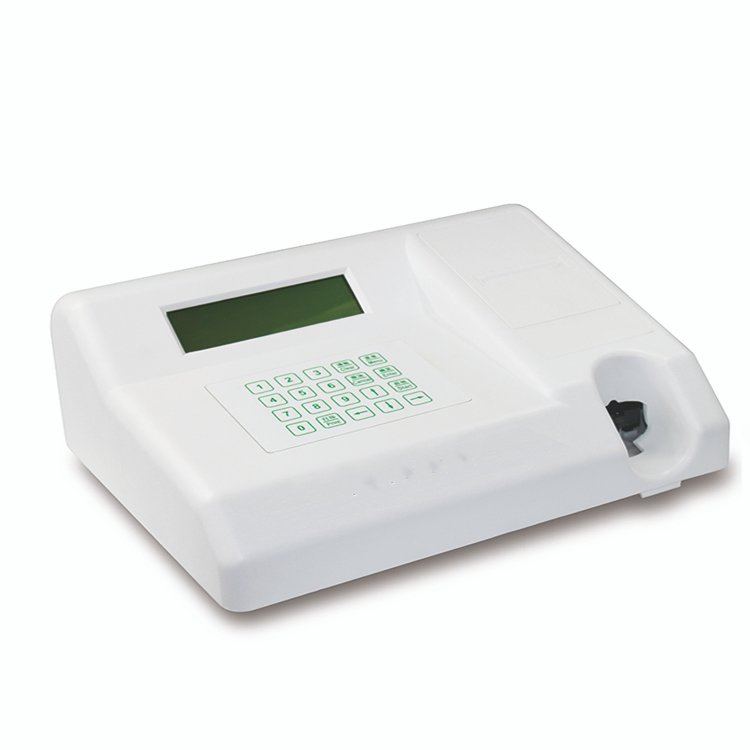

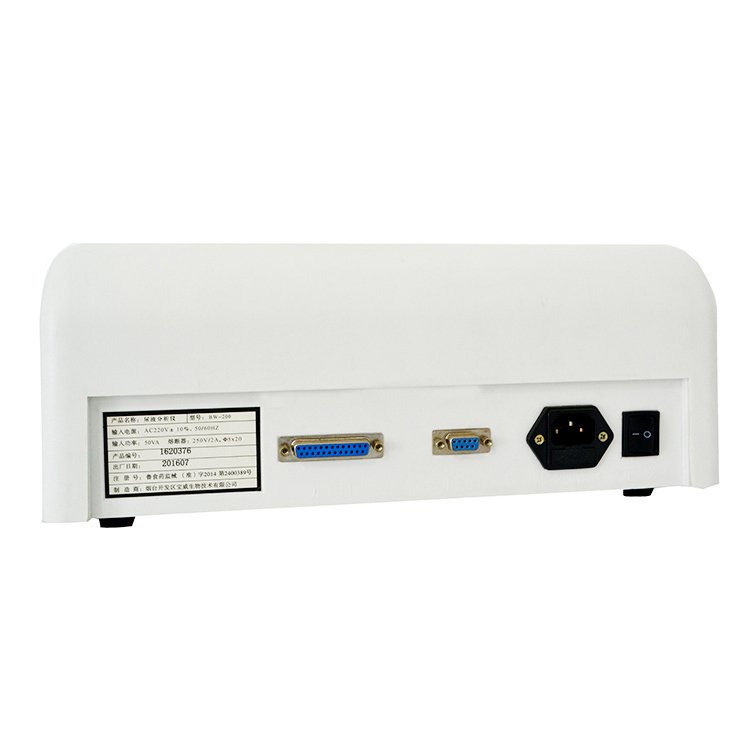

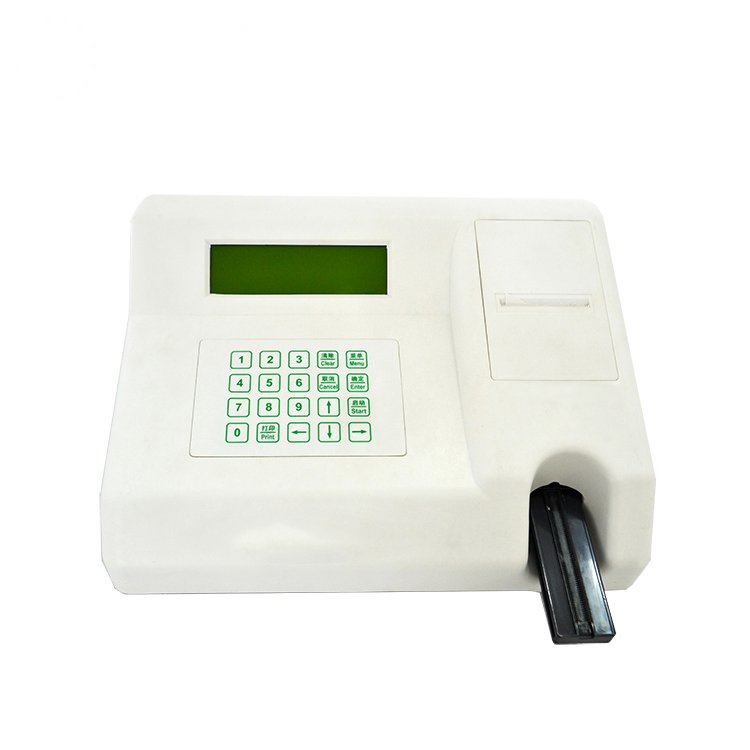

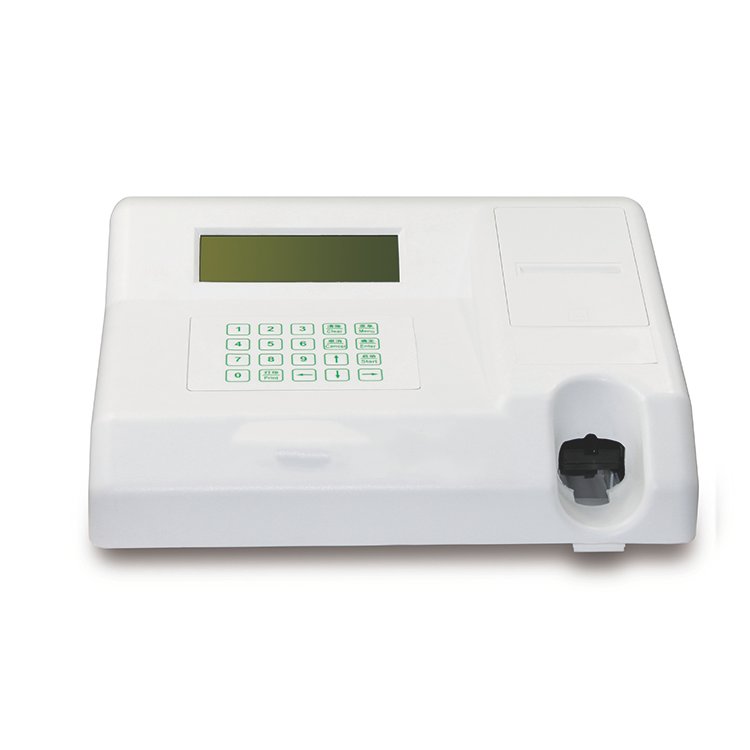

Open Reagent Urine Analyzer Machine NEUBW01
- Model: Open Reagent Urine Analyzer Machine NEUBW01
- Type: Semi-auto Immunoassay System
- Measurement Principle: Ultra-high brightness cold light source, reflectometry
- Test Speed: 60-120 samples per hour
- Measurement Items: Includes glucose, bilirubin, ketones, and more
- Data Storage: Stores up to 2000 test results with query options
- Report Method: Options for international or conventional units
- Built-in high-speed thermal printer for record printing
- Supports multiple languages: Chinese and English
- Compact dimensions: 350MM x 285MM x 140MM and lightweight ≤3Kg
- SKU
- NEUBW01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Open Reagent Urine Analyzer Machine NEUBW01
Semi-automatic immunoassay system delivering rapid, accurate urinalysis with ultra-high brightness cold light source reflectometry. Processes 60–120 samples per hour with comprehensive measurement of 14 analytes including glucose, bilirubin, ketones, and microalbumin. Compact, lightweight design with integrated thermal printer and dual-language interface for clinical laboratory and point-of-care environments.
Clinical overview
The NEUBW01 is a semi-automatic urine analyzer engineered for high-throughput clinical laboratories and point-of-care settings. Utilising ultra-high brightness cold light source reflectometry, the system delivers precise quantitative and qualitative analysis of 14 urinary analytes with minimal operator intervention. The 60–120 samples-per-hour throughput accommodates busy clinical environments while maintaining accuracy across glucose, bilirubin, ketones, specific gravity, pH, blood, protein, urobilinogen, nitrite, leukocyte, ascorbic acid, creatinine, calcium, and microalbumin measurements.
Built-in data management stores up to 2,000 test results with full query and retrieval capability. The integrated high-speed thermal printer provides immediate hardcopy documentation, while the 240×64 dot-matrix LCD display offers real-time result visualisation. Dual-language interface (Chinese and English), RS232 connectivity for hospital information system integration, and automatic leakage detection ensure seamless workflow integration and cross-contamination prevention in multi-user laboratory environments.
Key features & surgeon benefits
Comprehensive Urinalysis
- 14 simultaneous measurement parameters
- Detection wavelength 525–660 nm for optimal optical clarity
- Open reagent system for flexibility and cost control
Rapid Sample Processing
- 60–120 samples per hour throughput
- Automatic leakage detection prevents cross-contamination
- Integrated thermal printer for immediate result documentation
Compact & Portable
- Lightweight design (≤3 kg) for flexible placement
- Low power consumption (50 VA)
- Data storage for up to 2,000 results reduces paper usage
System Connectivity
- RS232 interface for hospital management system integration
- External urine sediment analysis system compatibility
- Dual-language support (Chinese, English)
Technical specifications
| Measurement Principle | Ultra-high brightness cold light source, reflectometry |
|---|---|
| Measurement Items | Glucose (GLU), Bilirubin (BIL), Ketone (KET), Specific Gravity (SG), pH, Blood (BLD), Protein (PRO), Urobilinogen (URO), Nitrite (NIT), Leukocyte (LEU), Ascorbic Acid (VC), Creatinine (CRE), Calcium (CAL), Microalbumin (MAL) |
| Test Speed | 60–120 samples per hour |
| Test Strip Type | Open test strips |
| Detection Wavelength | 525 nm–660 nm |
| Record Method | Thermal print / LCD display |
| Data Storage | 2,000 test results with query capability |
| Report Method | International units or conventional units (selectable) |
| Display | 240×64 dot matrix, 37 mm × 130 mm |
| Language Selection | Chinese, English |
| Working Environment | 15°C–35°C, Humidity <85% |
| Power Consumption | 50 VA |
| Net Weight | ≤3 kg |
| Dimensions | 350 mm × 285 mm × 140 mm |
| Data Communication | RS232 interface; external urine sediment analysis system; hospital management system integration |
| Safety Features | Automatic leakage detection; instrument self-test; standard grayscale detection |
| Instrument Classification | Class II Medical Device |
| Warranty | 2 Year Manufacturer Warranty |
| After-sales Service | Online technical support |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Urine Analyzer Unit | NEUBW01 semi-automatic analyzer with integrated thermal printer and LCD display | 1 |
| Power Supply | AC power adapter, 50 VA | 1 |
| RS232 Cable | Data communication interface cable | 1 |
| User Manual | Bilingual operation and maintenance guide (Chinese/English) | 1 |
| Thermal Paper Roll | High-speed printer paper (sample) | 1 |
| Cleaning Solution | Maintenance and calibration solution | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the NEUBW01 urine analyzer. We provide comprehensive technical support and training for seamless laboratory integration.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
