- Automatic Urine Analyzer H-500 for efficient urinalysis
- Tests a wide range of parameters: urobilinogen, bilirubin, ketone, blood, protein, nitrite, leukocytes, glucose, specific gravity, pH, and microalbumin creatinine
- Utilizes photoelectric colorimetry for accurate results
- Compatible with DIRUI H8, H10, H11, and other urinalysis strips
- High throughput: processes 514 strips per hour
- Stores up to 5000 patient results for easy access and tracking
- 5.7” LCD display with multilingual support (10 languages)
- RS-232 and parallel printer interfaces for data transfer
- Compact dimensions: 395mm x 382mm x 304mm
- Lightweight design at only 7.4kg, ideal for various settings
- Built-in thermal printer for immediate result printing
High-throughput automated urinalysis system delivering rapid, accurate results across 12 diagnostic parameters. Photoelectric colorimetry technology with integrated thermal printing and multilingual interface for seamless laboratory workflow integration.

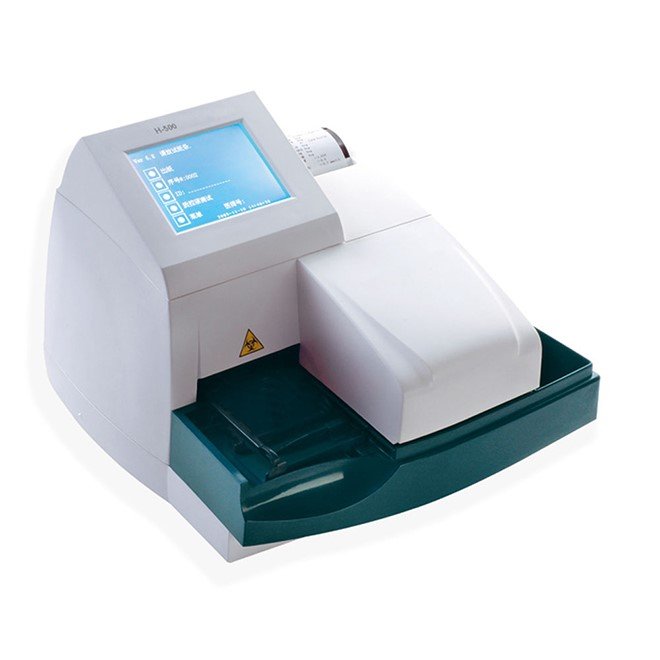

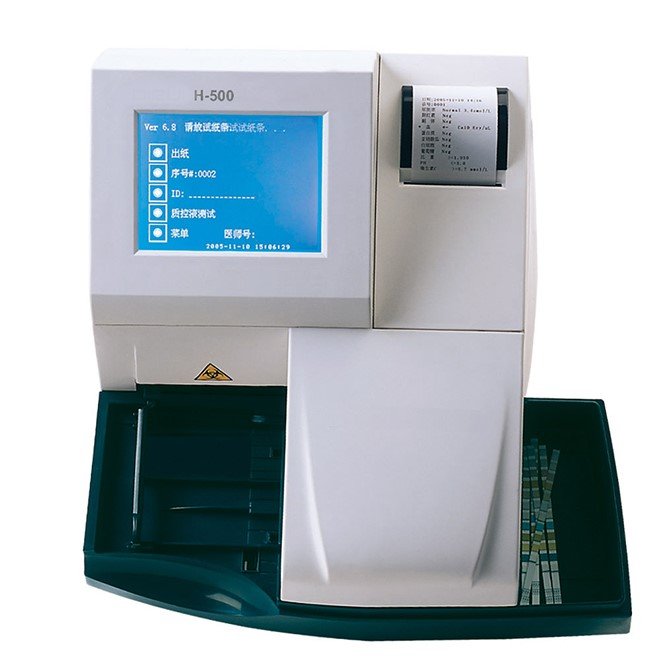

The Automatic Urine Analyzer H-500 is a fully automated benchtop system designed to streamline urinalysis workflows in clinical laboratories and point-of-care settings. Using advanced photoelectric colorimetry, the analyzer delivers rapid, reproducible results across 12 diagnostic parameters including urobilinogen, bilirubin, ketone, blood, protein, nitrite, leukocytes, glucose, specific gravity, pH, microalbumin, creatinine, and calcium. With a processing capacity of 514 strips per hour, the H-500 significantly reduces manual handling and turnaround time while maintaining diagnostic accuracy.
The system features a 5.7-inch LCD display with multilingual support (10 languages), integrated thermal printer for immediate result documentation, and data storage for up to 5000 patient results. RS-232 and parallel printer interfaces enable seamless integration with laboratory information systems. The compact, lightweight design (395mm × 382mm × 304mm, 7.4kg) makes it suitable for diverse laboratory environments, from high-volume clinical centers to smaller diagnostic facilities.
| Test Parameters | Urobilinogen, bilirubin, ketone, blood, protein, nitrite, leukocytes, glucose, specific gravity, pH, microalbumin, creatinine, calcium |
|---|---|
| Test Wavelengths | 525nm, 572nm, 610nm, 660nm |
| Test Principle | Photoelectric colorimetry |
| Compatible Strips | DIRUI H8, H10, H11, H11MA(N), H12, H13-Cr, H14-Ca urinalysis strips |
| Throughput | 514 strips per hour |
| Data Memory | 5000 patient results |
| Display | 5.7-inch LCD with multilingual support (Chinese, English, Russian, Polish, Italian, Spanish, Portuguese, Turkish, Hungarian, German, French) |
| Computer Interface | RS-232 port; parallel printer interface |
| Printer | Built-in thermal printer |
| Power Supply | 100–110V/240VAC, 50/60Hz/60Hz |
| Power Consumption | 40VA |
| Dimensions | 395mm (W) × 382mm (D) × 304mm (H) |
| Weight | 7.4kg |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Automatic Urine Analyzer H-500 | Main benchtop analyzer unit with integrated thermal printer and LCD display | 1 |
| Power Cable | AC power supply cable (100–110V/240VAC, 50/60Hz/60Hz) | 1 |
| RS-232 Interface Cable | Serial communication cable for LIS integration | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
| Thermal Paper Roll | Replacement thermal paper for built-in printer | 2 |
Contact our sales team to discuss pricing, volume discounts, and integration support for the Automatic Urine Analyzer H-500. We provide comprehensive technical consultation and customisation options for laboratory and OEM applications.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Strip reading is consistent and the analyser flags abnormal protein and glucose reliably against our manual checks. Throughput keeps the morning batch moving without a backlog.
Dr. Priyanka Deshpande, MD, PhDVerified buyerMar 17, 2025
It has reduced our manual reading variability noticeably, and the leukocyte and nitrite results agree with microscopy in most cases. Maintenance is undemanding.
Dr. Farah Nasser, MDVerified buyerDec 10, 2024
Calibration holds well between runs and the printout is clear for the record. Occasionally it needs a strip re-feed, but reagent economy is good.
Gordon Halliwell, MLSApr 29, 2025
